SMT Line Conveyor – ET 1000C | Inspection & Linking Conveyor System
Overview of SMT Line Conveyor – ET 1000C by Estovir Technologies

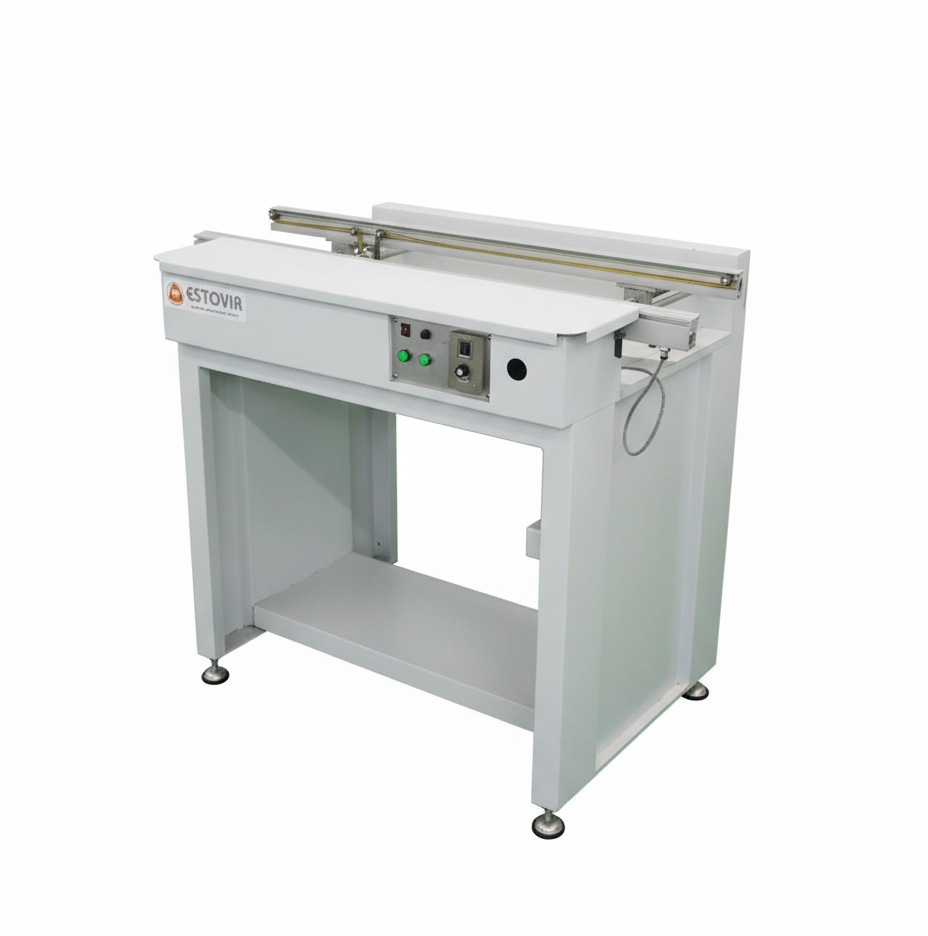

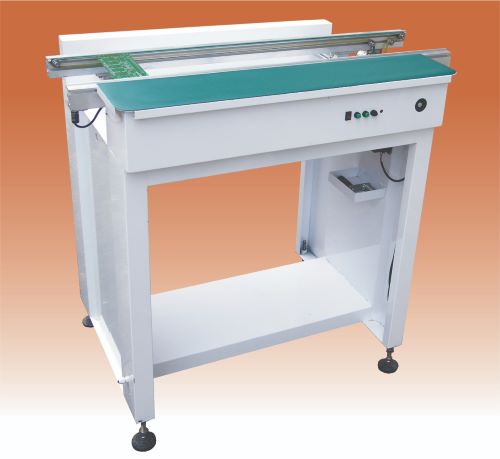

The SMT Line Conveyor – ET 1000C is a high-performance inspection and buffer conveyor engineered for SMT production lines, ensuring seamless PCB transport and consistent production flow. Designed with antistatic belt technology, precise rail width adjustment, and SMEMA communication compatibility, it provides reliable connectivity across stencil printers, pick & place machines, and reflow ovens — making it an essential asset in every modern electronics assembly environment.
Constructed from industrial-grade MS or SS, the Estovir 1000C ensures long-term stability, high accuracy, and smooth PCB handling. With a conveyor height of 900 mm ± 20 mm and adjustable width from 50 mm to 350 mm, it integrates effortlessly into SMT lines, providing efficient inspection, linking, and buffering between process stages.
Key Features of SMT Line Conveyor – ET 1000C
- Advanced Construction & Durability
- Precision-engineered MS or SS frame ensures accurate rail width alignment and structural rigidity.

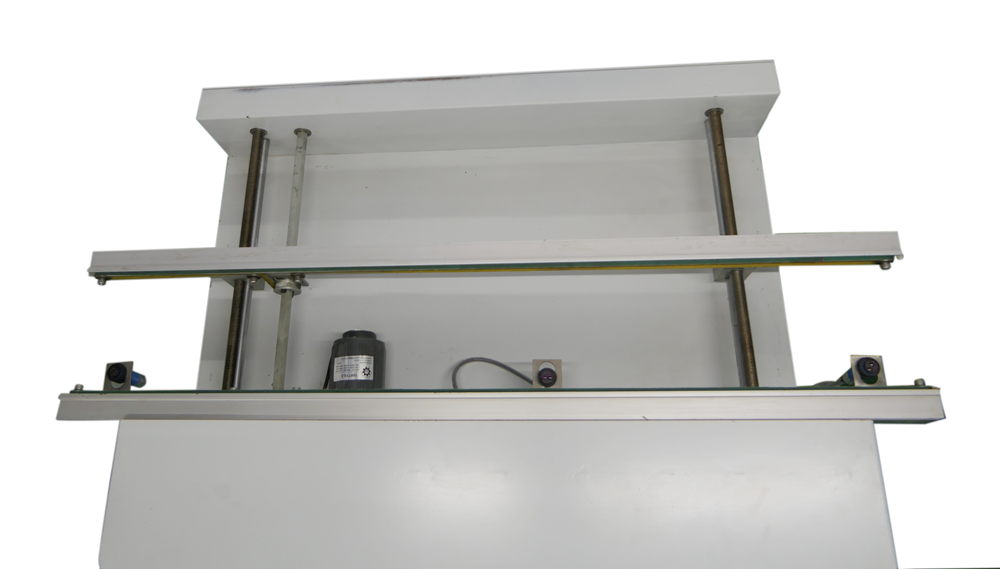

- Antistatic belt and alloy MS or SS parts extend operational life while protecting sensitive PCBs.
- SMEMA Communication Integration

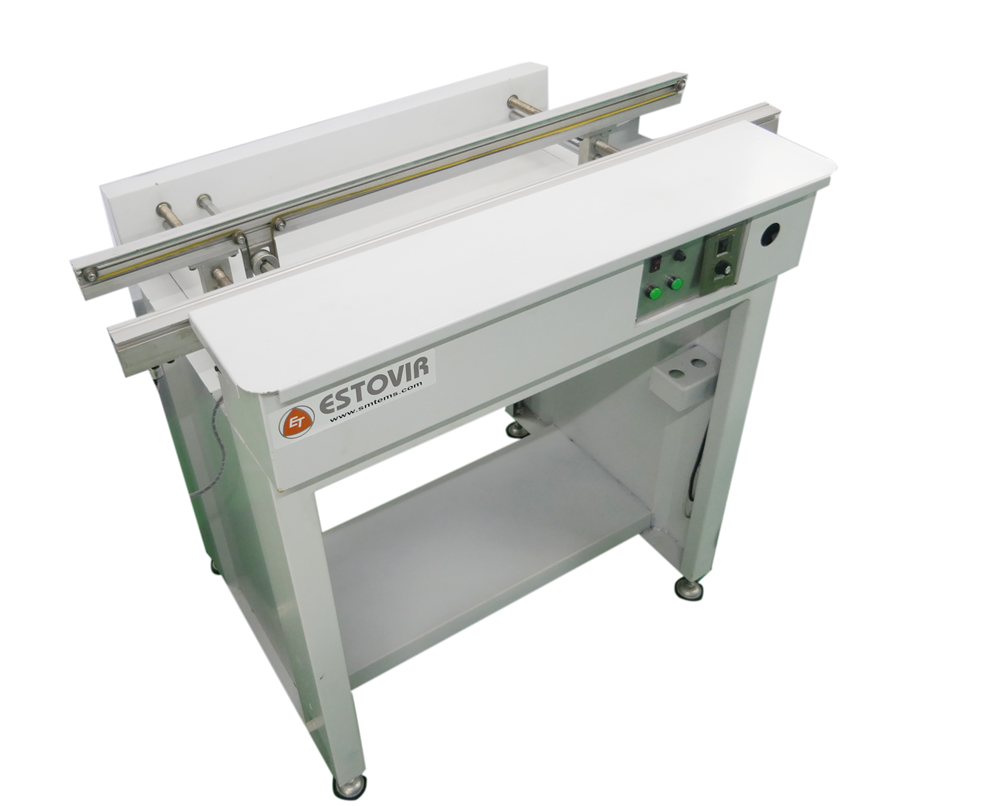

- Fully compatible with SMEMA interface standards for easy linking with other SMT equipment.
- Supports synchronized PCB flow between upstream and downstream machines, minimizing downtime.
- Precision PCB Handling

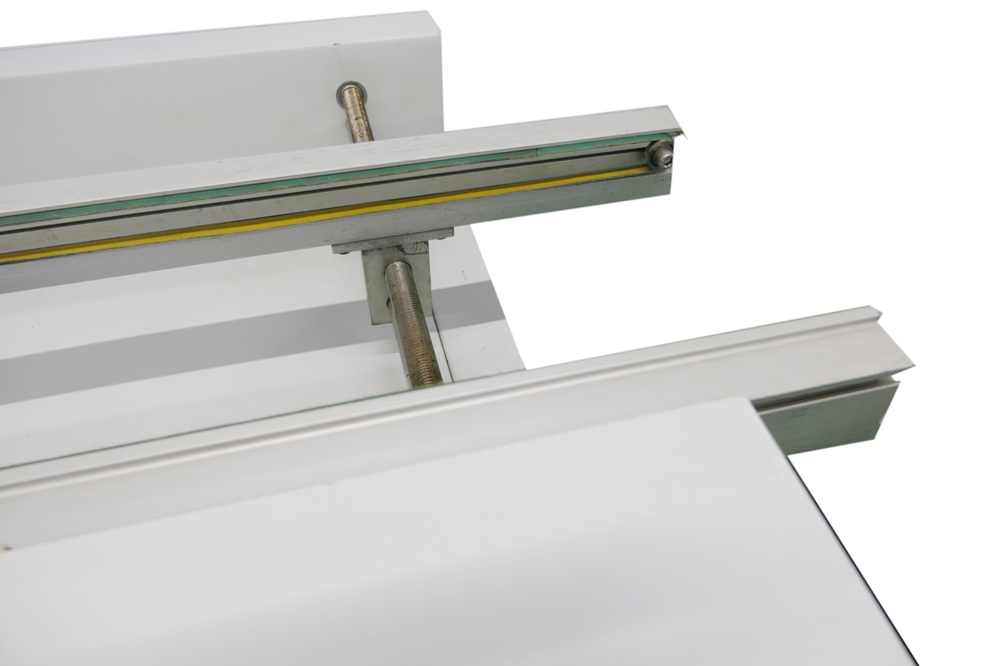

- Adjustable rail width system accommodates PCB sizes ranging from 50 mm to 350 mm.
- Stable 900 mm ± 20 mm conveyor height ensures accurate line alignment and smooth transfers.
- Control & Customization

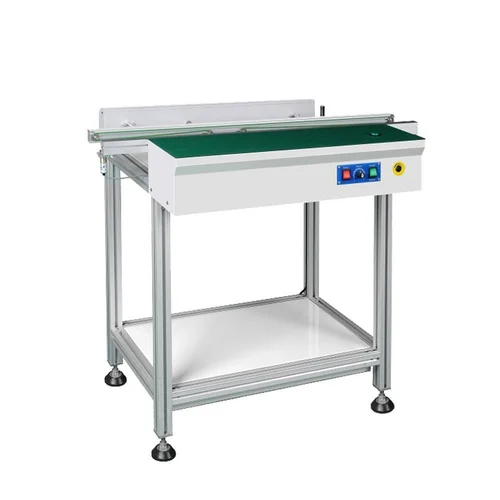

- Optional PLC control system allows automated operation and variable speed (0.5 – 20 m/min).
- Custom add-ons such as lighting, inspection modules, or cooling fans enhance versatility.
- Compact & Modular Design

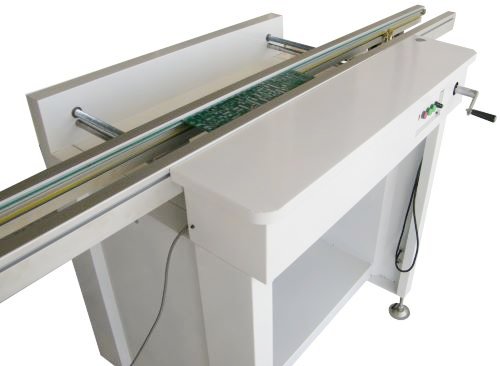

- Available in 1000 mm standard and 500 mm compact lengths for varied production layouts.
- Modular design enables multi-unit configurations for extended buffering or inspection zones.
Customization
At Estovir Technologies, we understand that every SMT production line has unique layout and throughput needs. That’s why our SMT Line Conveyor – ET 1000C is available in a range of customizable lengths and configurations to fit your factory’s workflow.
Whether you require a compact 500 mm, standard 1000 mm, or extended 1500 mm conveyor, we can tailor the design, width, and accessories as per your exact requirements — ensuring optimal performance and perfect alignment with your existing SMT or AI line setup.
- Length variants: 500 mm / 1000 mm / 1500 mm / custom sizes
- Adjustable conveyor width for different PCB formats
- Optional lighting, cooling, or inspection modules
- PLC control and speed customization (0.5–20 m/min)
- Structural modifications for line integration or multi-unit linking
- Structure Material: MS or SS.
Applications of SMT Line Conveyor – ET 1000C
The Estovir 1000C serves as a vital component in SMT and AI assembly lines, enabling efficient PCB transfer, buffering, and inspection between key production stages. Its ESD-safe design and modular structure make it ideal for integration in a variety of electronic manufacturing environments.
- Linking between stencil printers, pick & place machines, and reflow ovens
- Buffer storage during speed variation or equipment maintenance
- Visual inspection and quality control stations with lighting options
- PCB testing and verification in assembly lines
- Integration with AI assembly systems for through-hole insertion and mixed production setups
Why Choose SMT Line Conveyor – ET 1000C from Estovir Technologies
Choosing Estovir Technologies means investing in precision, reliability, and long-term performance. With decades of industry experience, Estovir designs conveyors that deliver seamless operation, low maintenance, and global quality standards for demanding electronics manufacturing environments.
- Engineered by experts in PCB handling and SMT automation
- ESD-safe and SMEMA-compatible for safe and synchronized operations
- Rugged aluminium/steel structure for durability and accuracy
- Modular, space-saving options (500 mm & 1000 mm)
- Customizable features with PLC and inspection enhancements
- Backed by Estovir Technologies’ support and service assurance
Our Complete Conveyor Solutions
At Estovir Technologies, we provide a comprehensive range of conveyor systems tailored to meet diverse production and assembly needs. Each solution is designed to optimize workflow, increase efficiency, and enhance operator comfort while ensuring seamless integration into your existing setup.
-
MI Line – Single Side: Compact single-sided conveyor for smooth and reliable PCB handling.
-
MI Line – Double Side: Dual-sided configuration that maximizes throughput and saves production floor space.
-
MI Line Module – 2.4 Mtr.: Modular conveyor unit for flexible and easily expandable line setups.
-
Insertion Work Station with Manual Free Flow Conveyor – MPI 350: Ideal for manual insertion processes, ensuring effortless material flow.
-
Work Table Conveyor: Ergonomic workstation conveyors with ESD-safe designs for operator safety and precision work.
-
Cooling Conveyor: Specialized design for controlled cooling after soldering or reflow operations.
-
SMD Line Conveyor – 1000 mm:Compact conveyor engineered specifically for smooth transfer in SMD assembly lines.
-
Work Station Conveyor: Integrated assembly workstation with customizable and adjustable features.
-
Inlet Conveyor: Reliable entry-point conveyor for feeding PCBs and components into the assembly line.
All our conveyor systems are built to standard configurations but can also be customized for specific requirements—delivering efficiency, durability, and superior production quality.
