Manual Wire Crimp Pull Tester – 100N (10Kg)
Overview of Manual Wire Crimp Pull Tester – 100N (10Kg)

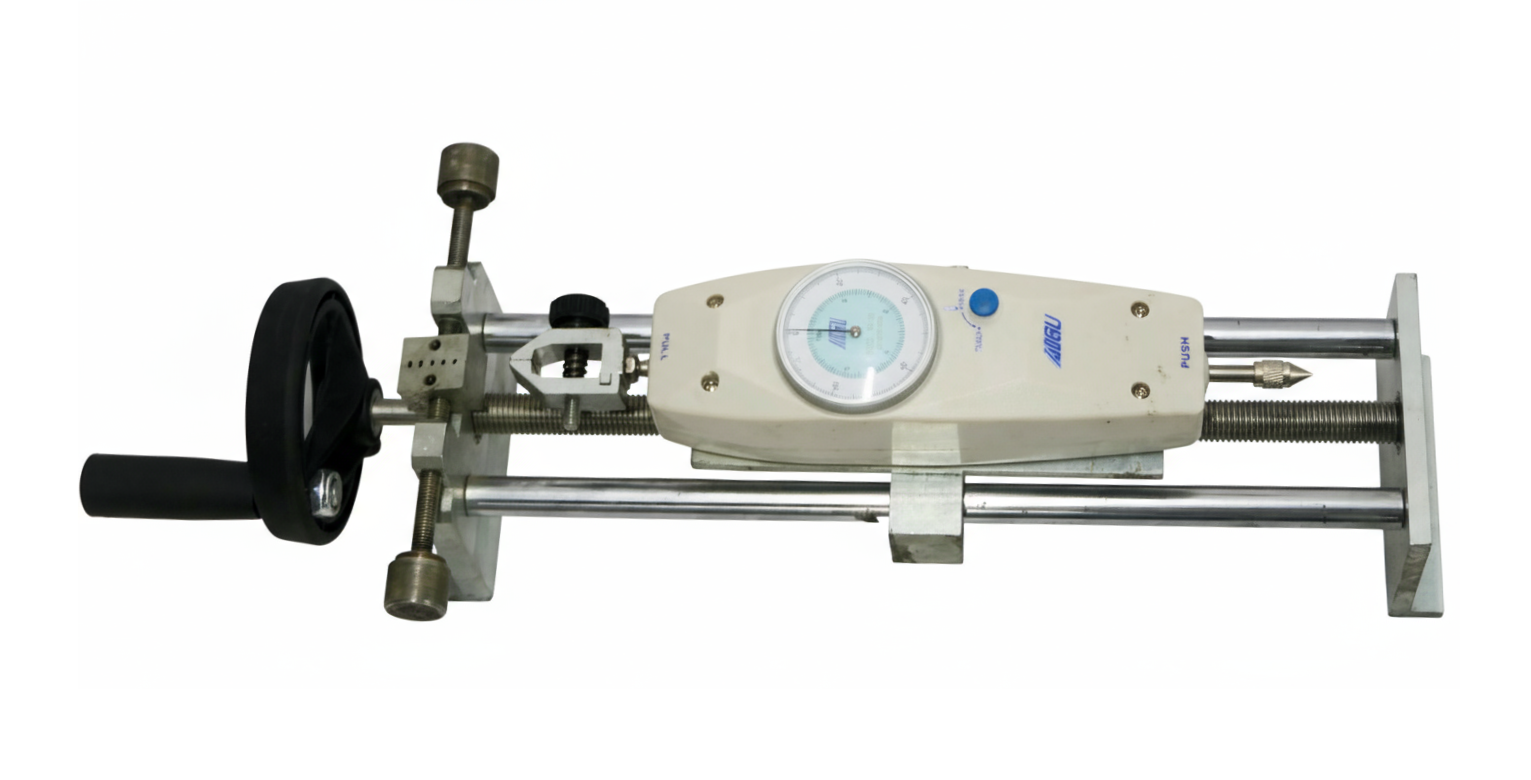

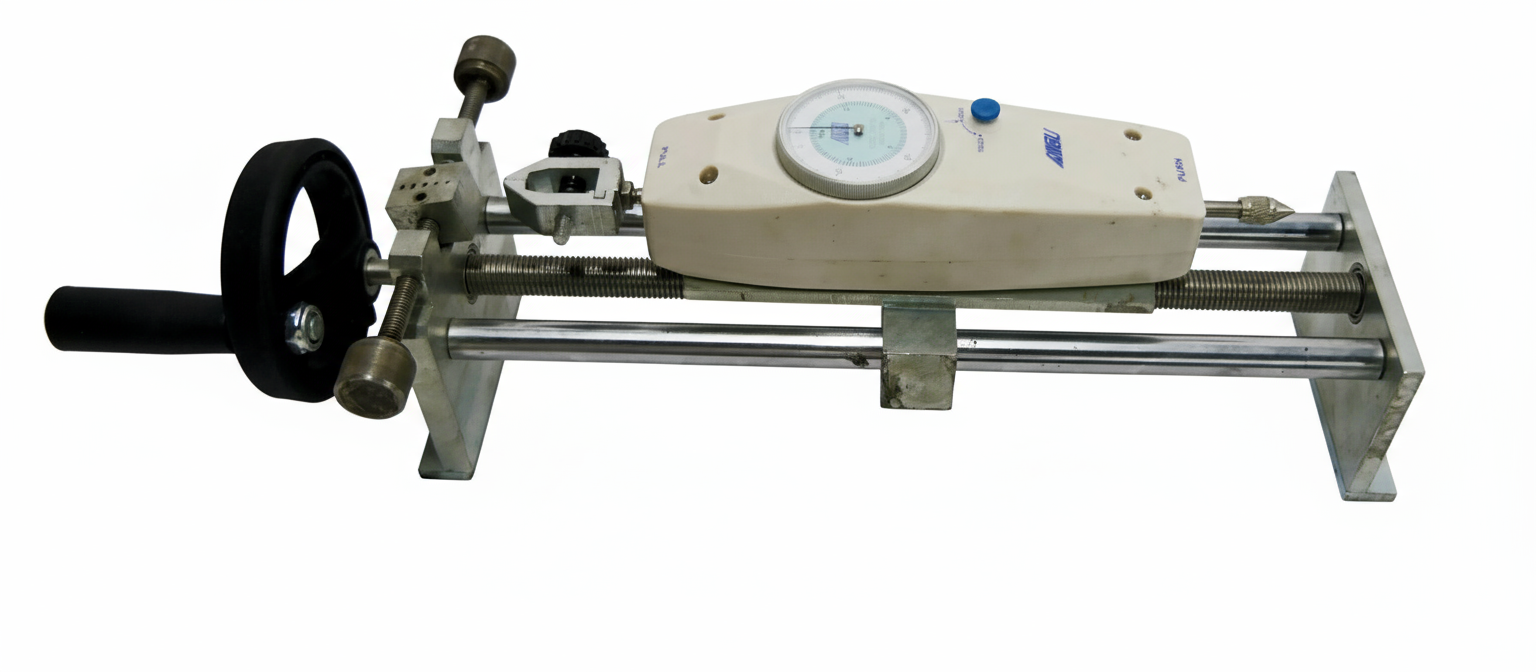

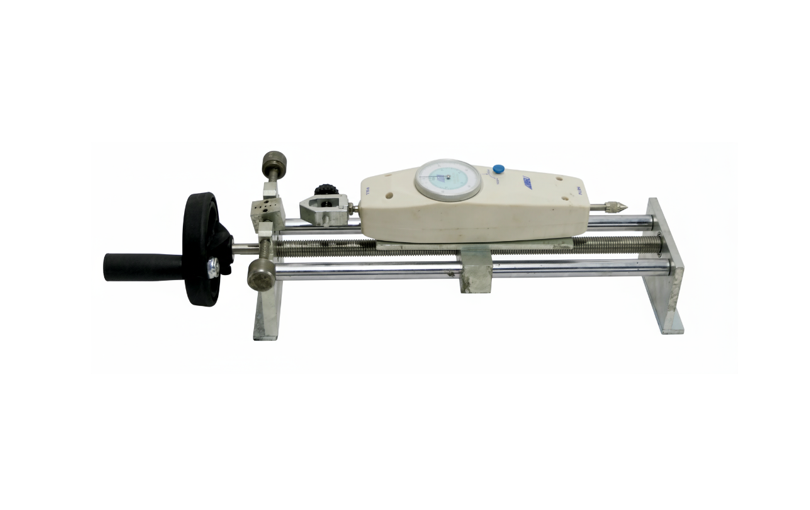

The Manual Wire Crimp Pull Tester – 100 (10Kg) is a precision-engineered, hand-operated device designed for accurate measurement of crimp strength, tensile force, and pull force in wires and terminals. Ideal for quality control, production validation, and laboratory testing, this compact instrument ensures reliable verification of crimped connections in electrical components.
With a maximum capacity of 100 N (10 kg), it enables users to evaluate terminal retention, wire integrity, and crimp strength to prevent connection failures and improve product reliability. Engineered for industries such as electronics, automotive, appliance manufacturing, and wire harness production, this tester provides consistent, repeatable, and traceable results as per international testing standards.
Durable, portable, and maintenance-free, the MPT 100N delivers dependable performance for both destructive and non-destructive crimp testing applications.
Key Features
High-Accuracy Measurement
- Measures crimp strength, tensile force, and pull-off force up to 100N (10Kg) with excellent repeatability and precision.
Manual Operation
- Simple and reliable manual mechanism eliminates the need for power, ensuring low maintenance and zero downtime.
Rugged & Portable Design
- Compact aluminium construction makes it lightweight (4.75 kg) yet durable, suitable for bench-top and field testing.
Quick Fixture Adjustment
- Tool-free, fast fixture and grip adjustment enable easy operation and secure wire clamping for repeatable testing.
Universal Grip Compatibility
- Supports various terminal grips and wire sizes for flexible application across multiple cable and connector types.
Maintenance-Free Operation
- No electrical or pneumatic systems—ideal for long-term, low-cost use in production and QC environments.
Applications
The MPT 100N is designed for comprehensive crimp pull force testing across a wide range of industries and applications:
Wire Harness & Cable Assembly
- Used in production lines to test crimped wire terminals for quality assurance and batch validation.
Electronics Manufacturing
- Ensures reliable crimped joints in PCB assemblies, connectors, and small electronic components.
Automotive Industry
- Verifies wire terminal integrity in vehicle wiring harnesses and sensor connectors.
Research & Laboratory Testing
- Used in R&D labs for studying terminal retention, tensile performance, and material reliability.
Appliance & Industrial Equipment Manufacturing
- Ideal for auditing crimp quality in small-scale or contract assembly operations.
Why Choose Manual Wire Crimp Pull Tester – 100N (10Kg)?
Choosing the MPT 100N ensures accuracy, durability, and reliability in every test. It’s a cost-effective solution for any organization seeking traceable and consistent quality assurance in crimp testing.
Proven Precision
- Delivers accurate and repeatable results, ideal for production audits and laboratory analysis.
Durable & Compact
- Built with a sturdy metal frame for longevity while maintaining a compact form factor.
Customizable Fixtures
- Optional grips and accessories are available for specialized terminal types or wire configurations.
Comprehensive Support
- Includes product calibration, service, and after-sales technical assistance from Estovir Technologies.
Cost-Effective Quality Control
- Combines affordability with professional-grade precision for small and medium enterprises.
Our Wire Crimp Pull Tester Range
To further streamline quality control and testing operations, Estovir Technologies offers a comprehensive range of manual and automatic Wire Crimp Pull Testers designed to meet diverse industrial requirements:
- Manual Wire Crimp Pull Tester – 100N (10 Kg) – Compact, precise, and ideal for light-duty crimp strength testing.
- Manual Wire Crimp Pull Tester – 500N (50 Kg) – High-capacity model for medium to heavy-duty pull force testing applications.
- Automatic Wire Crimp Pull Tester – 500N (50 Kg) – Motorized, high-accuracy testing system for automated tensile and pull strength measurement.
