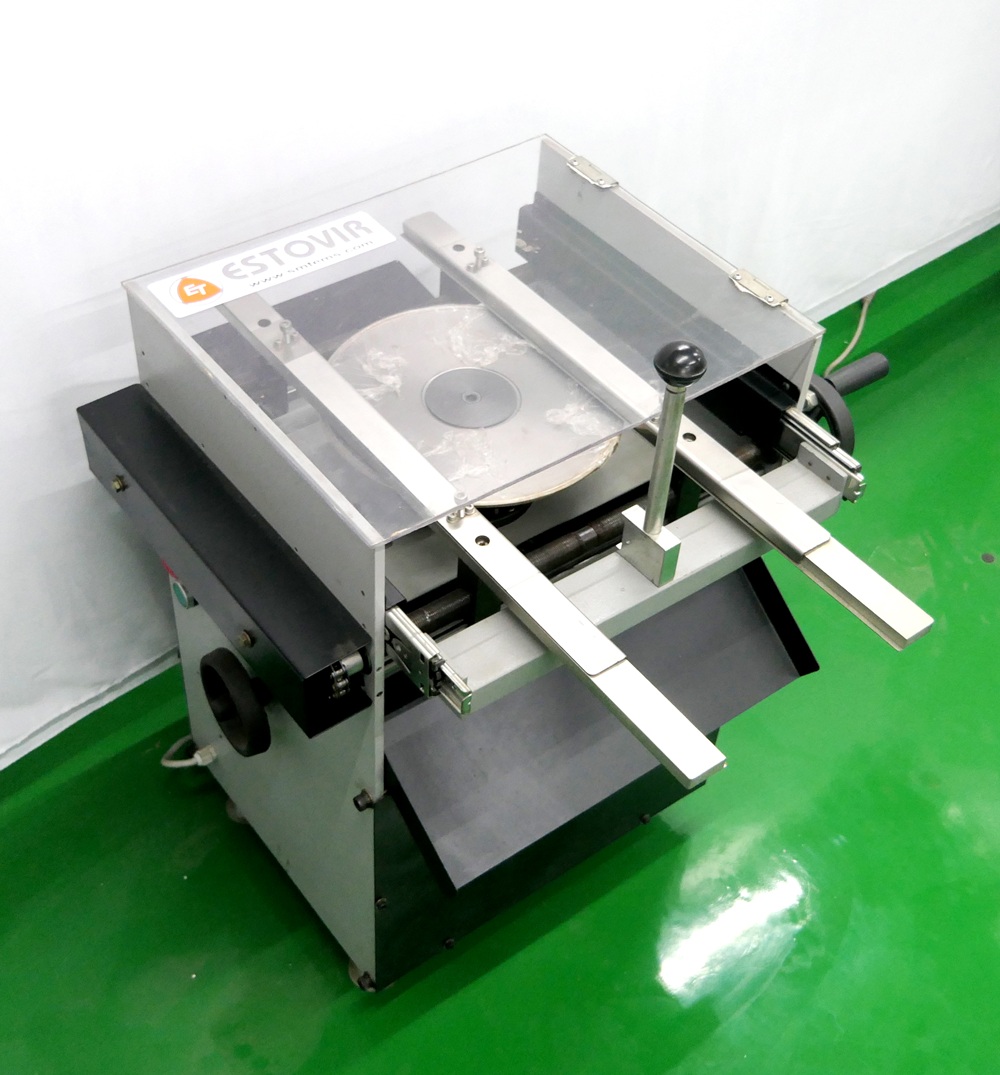

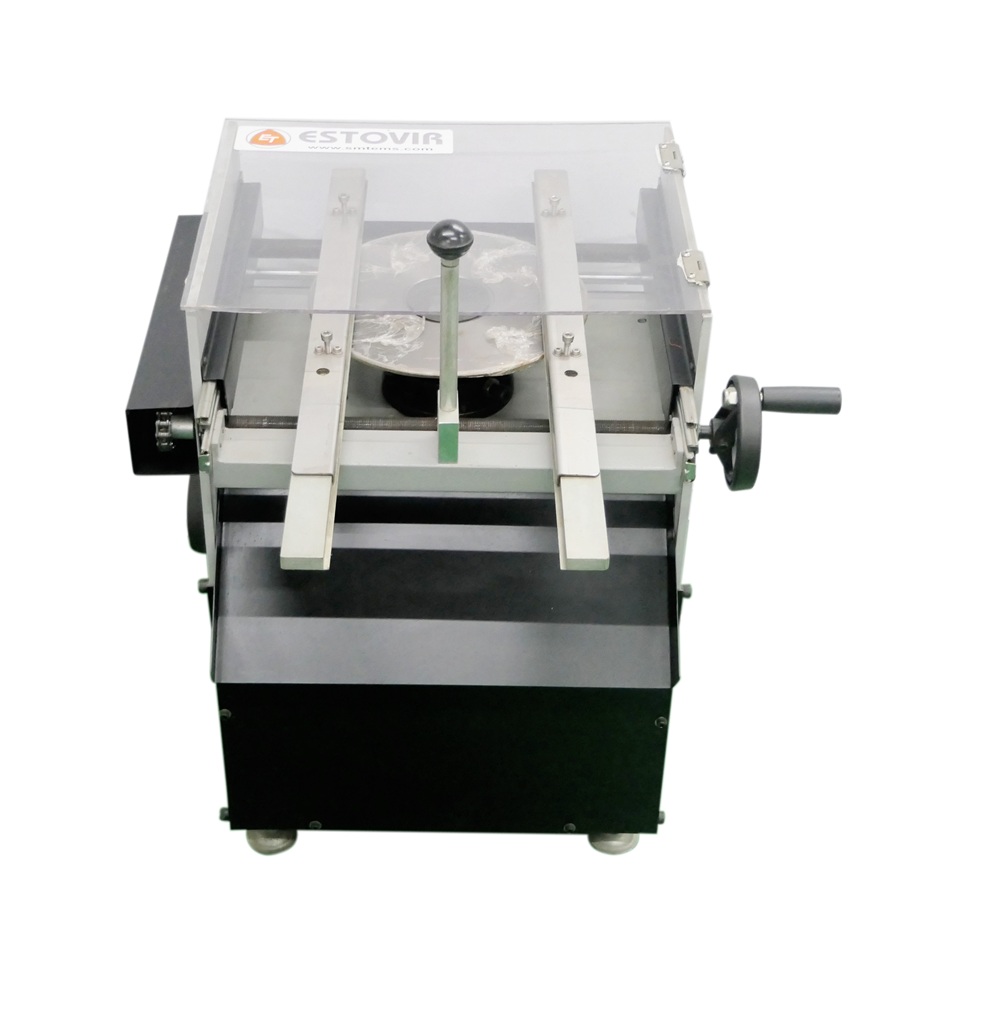

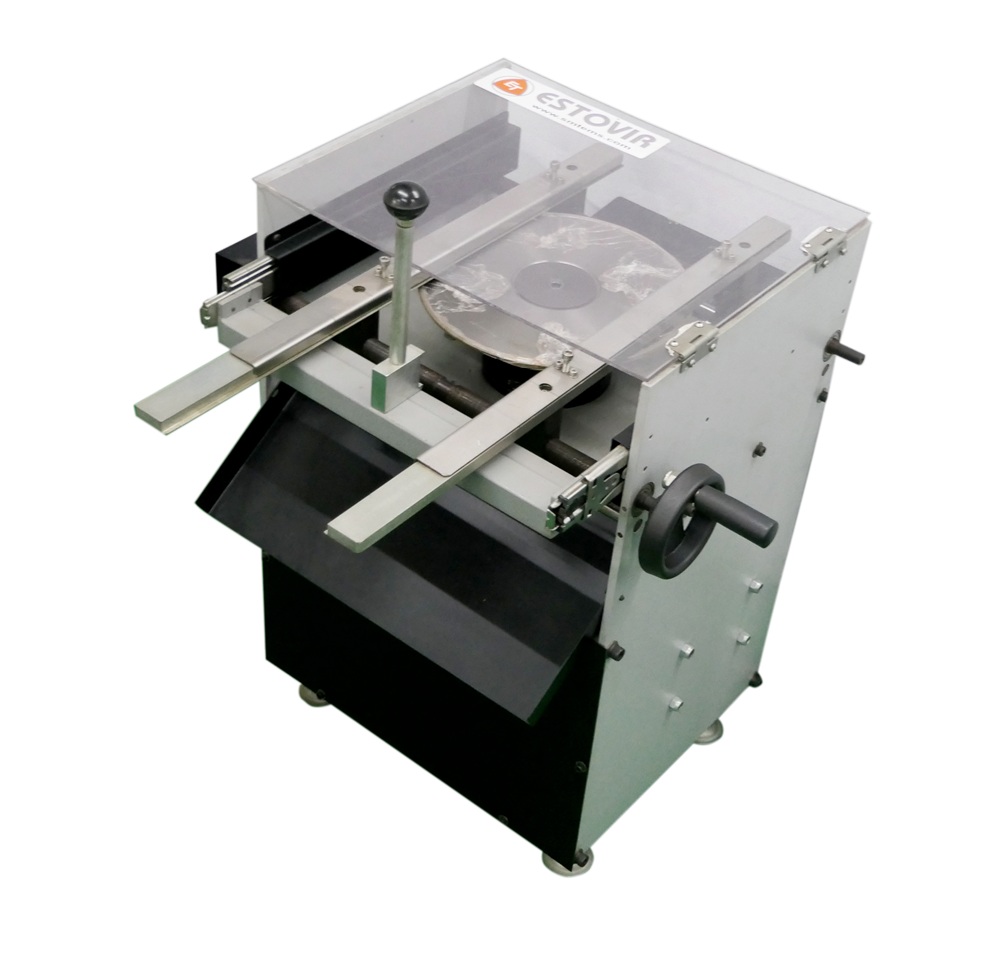

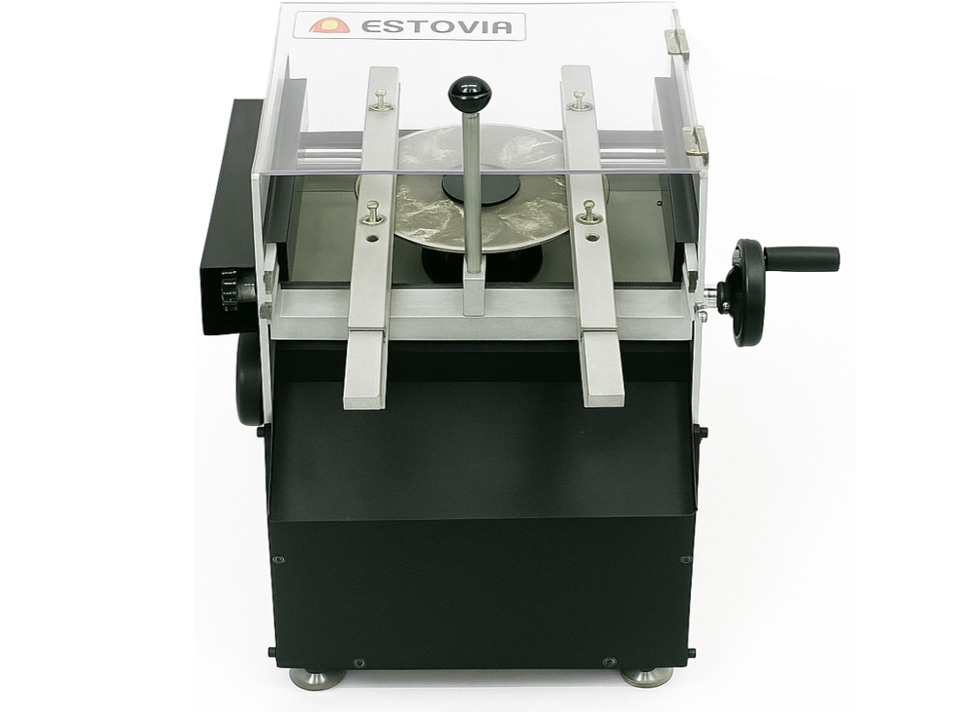

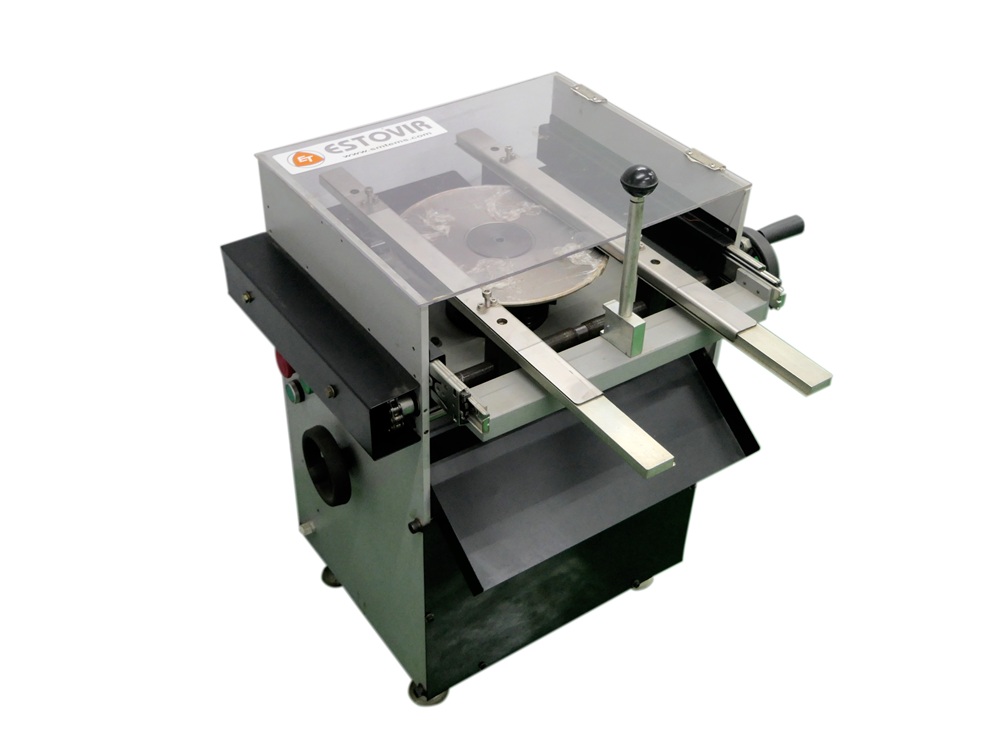

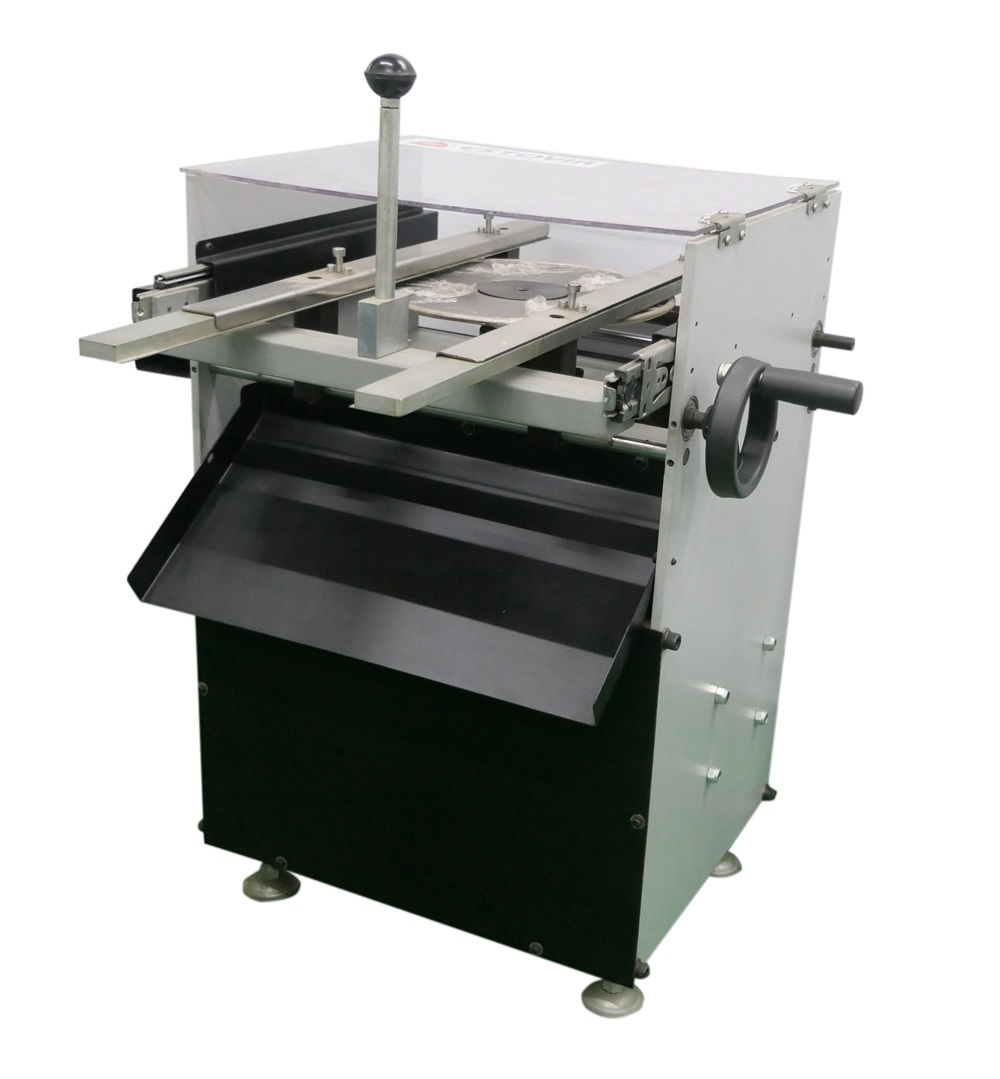

Manual Feed PCB Lead Cutting Machine – LC M66 by Estovir Technologies
Overview Manual Feed PCB Lead Cutting Machine – LC M66
The LC M66 Manual Feed PCB Lead Cutting Machine by Estovir Technologies is specially designed for trimming extra leads from printed circuit boards (PCBs) after the soldering process. Operated manually with a push handle, it ensures safe, accurate, and consistent cutting. Equipped with a high-speed tungsten carbide blade (LC TC 250), the LC M66 delivers smooth, damage-free cutting performance for PCB sizes up to 500 × 300 mm and thicknesses of 0.8–2.5 mm. Compact and efficient, this machine is ideal for small to medium-scale PCB assembly units.
Key Features of Manual Feed PCB Lead Cutting Machine – LC M66
- Manual Feed Design
Operators can easily guide PCBs using the push-handle, ensuring safe, consistent, and controlled cutting.
- Tungsten Carbide Blade (LC TC 250)
Equipped with a high-performance carbide blade (Ø250 mm) that delivers clean cuts and can be re-sharpened for longer service life.
- Accurate Post-Solder Cutting
Guarantees uniform lead trimming without damaging solder joints or PCB surfaces, making it suitable for delicate boards.
- Durable Industrial Build
With a strong 95 Kg frame, the LC M66 offers vibration-free operation and long-lasting reliability.
- Cost-Effective & Easy to Operate
Compact, low-maintenance design with minimal power requirement (½ HP motor) makes it ideal for small to medium-scale manufacturers.
Why Choose LC M66?
The LC M66 Manual PCB Lead Cutting Machine is a perfect balance of affordability, precision, and reliability, designed specifically for manufacturers who need safe and efficient PCB trimming without investing in complex automation. Its manual feed mechanism gives operators complete control over the cutting process, ensuring consistent quality across different PCB types. With its compact size and industrial-grade durability, the LC M66 is an excellent choice for electronics producers looking for a dependable solution in post-solder processing.
- Reliable cutting performance with manual control.
- Ensures clean, accurate trimming of soldered PCBs.
- Safe operation with push-handle feed design.
- Sturdy industrial build for continuous use.
- Uses long-life, re-sharpenable LC TC 250 blades.
Applications of Manual Feed PCB Lead Cutting Machine – LC M66
The LC M66 is widely used in PCB manufacturing and assembly units for trimming soldered leads in a safe, precise, and cost-efficient manner. Its simple manual feed operation makes it ideal for small-to-mid-scale production facilities, consumer electronics assembly lines, LED boards, automotive electronics, and other industrial electronics applications where accurate post-solder finishing is required.
- PCB assembly lines (small & mid-scale)
- Consumer electronics manufacturing
- LED and lighting PCB processing
- Automotive electronics assembly
- Industrial electronics repair and rework units
Maintenance & Blade Information
- Blade Care – Uses the LC TC 250 tungsten carbide blade, which can be re-sharpened with the LC G250 Blade Sharpening Machine.
- Low Maintenance – Simple design requires minimal upkeep.
- Operator Safety – Push-handle feeding ensures safe PCB handling during cutting.
To further streamline operations, Estovir Technologies offers a complete range of manual and automatic preforming machines to handle different requirements:
- PCB lead Cutting –PCB lead cutting machine with blades (Tungsten Carbide cutting blade)
- Sharpening Machines– Blade sharpening machine for Tungsten Carbide cutting blades
- PCB Cutting Machines – PCB Separator machine for cutting PCB’s with 2 or 6 blades
- Automatic: PCB Separator Machine – V cut 6 blade
- Automatic: PCB Separator Machine – V cut 2 blade
Each of these machines is engineered for high performance and supported by Estovir’s reliable service and fast delivery
