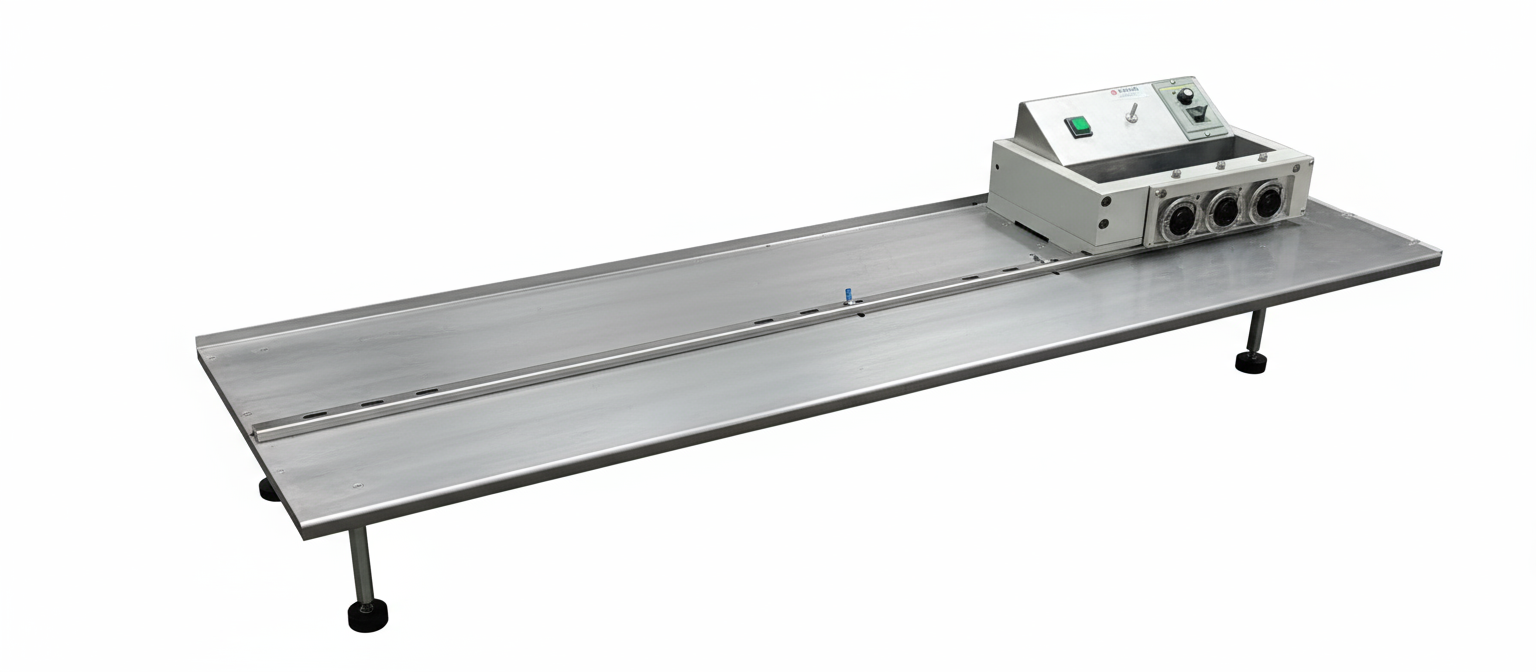

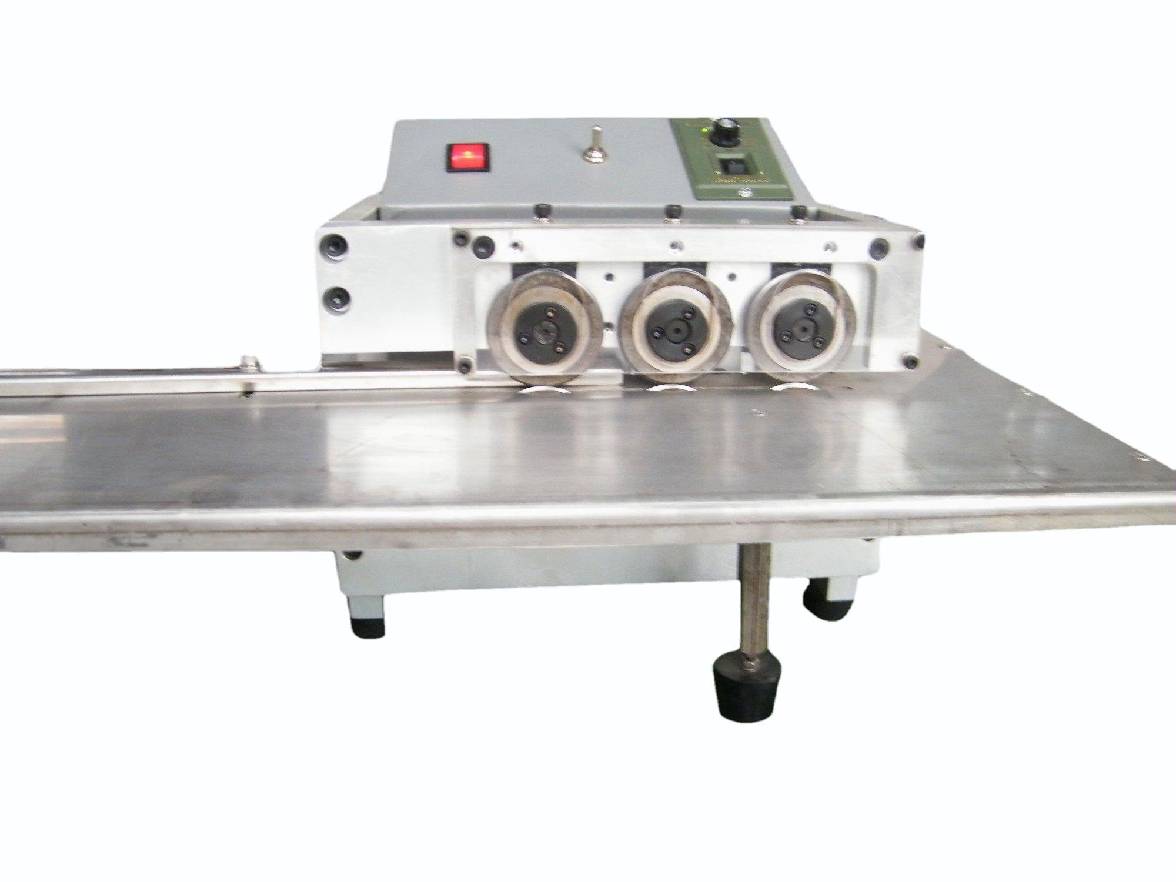

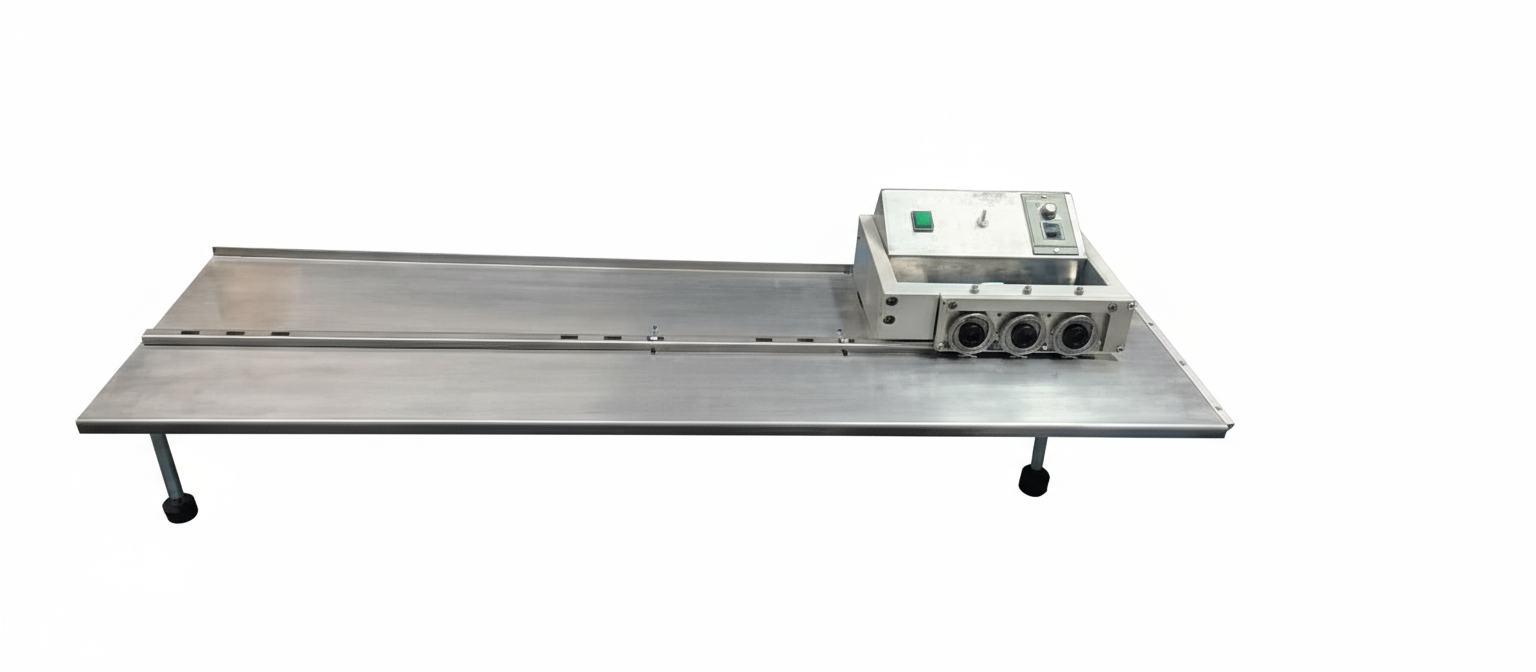

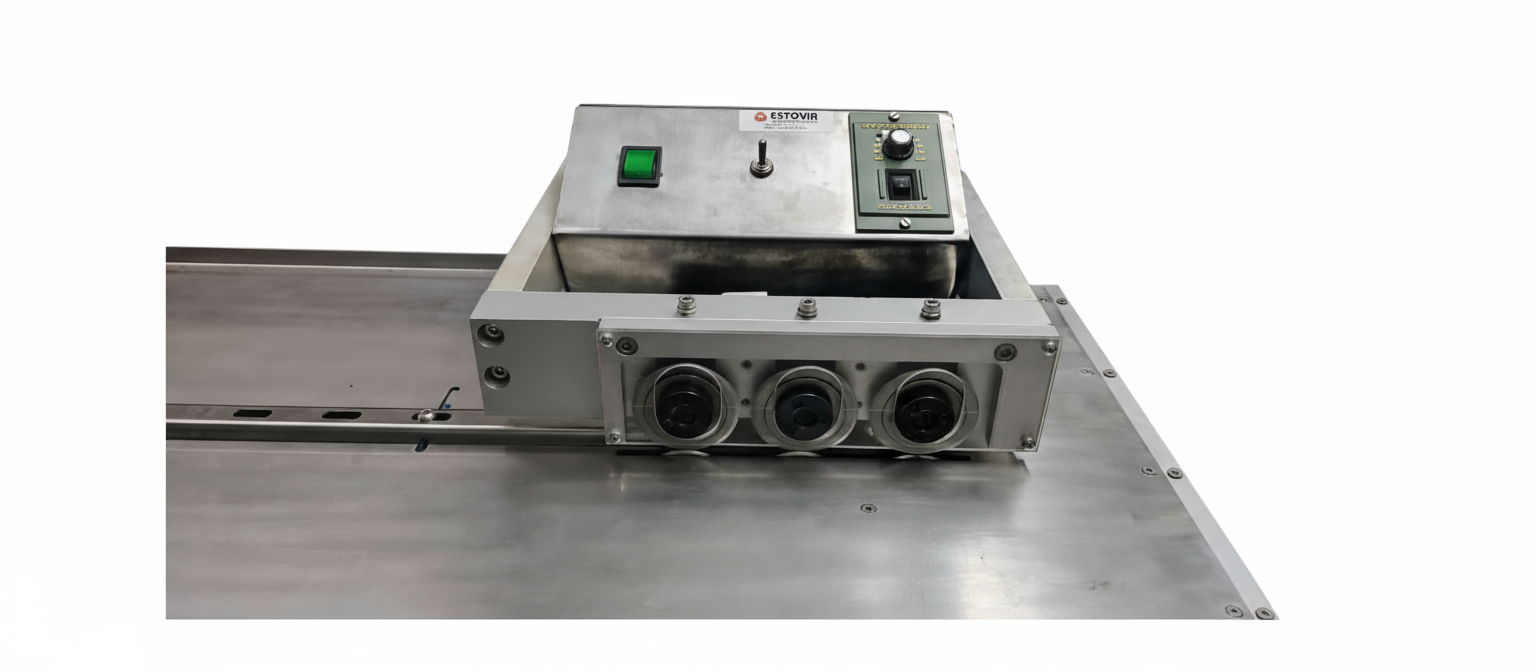

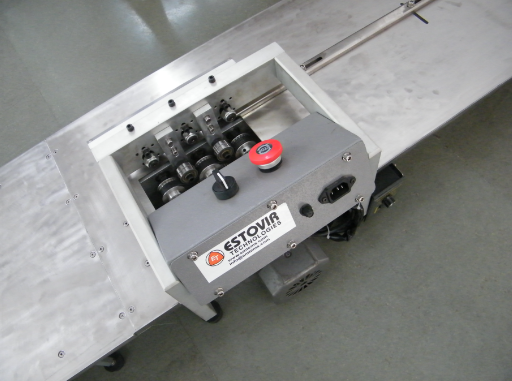

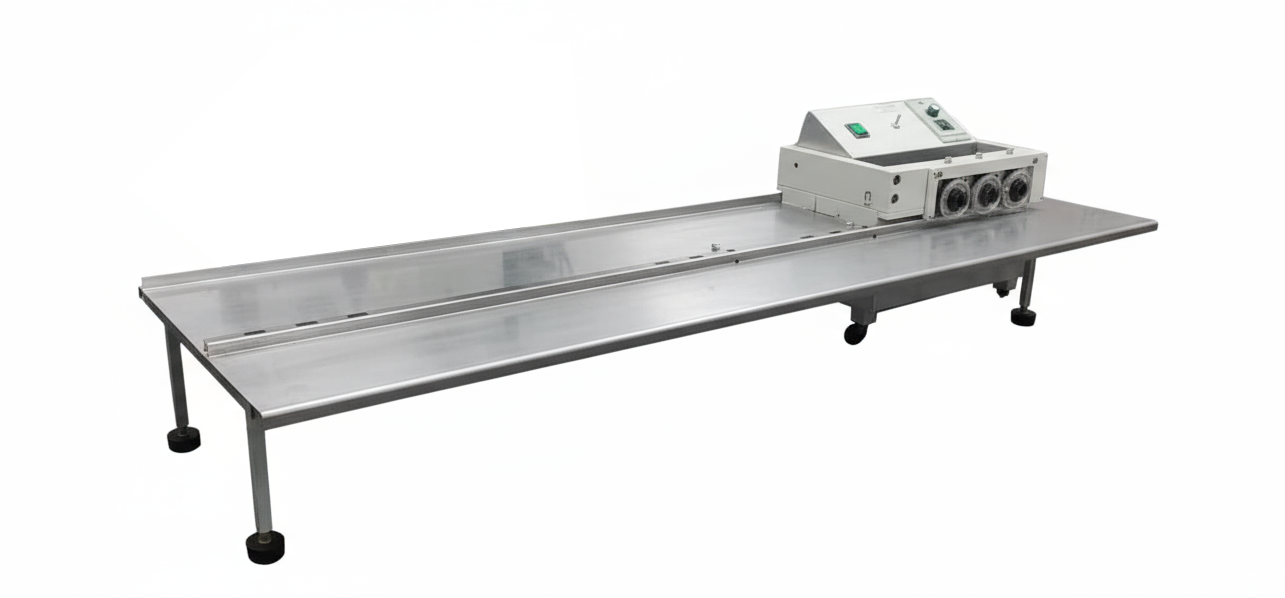

PCB Separator 6 Blade – EMS 1200 V Cut by Estovir Technologies

The EMS 1200 V Cut is an industrial-grade PCB depaneling machine equipped with a 6-blade precision cutting system. Unlike smaller dual-blade machines, the 6 Blade version is designed for high-volume, large-format PCB panels, making it perfect for electronics manufacturers who need speed, accuracy, and scalability. With a cutting speed of up to 20 meters per minute, it can handle even the most demanding production environments. Its straight-line cutting mechanism ensures clean and consistent results, while its adjustable blade speed allows customization based on PCB material and thickness (up to 3 mm). Compact yet powerful, the EMS 1200 V Cut provides stress-free separation, ensuring solder joints and delicate SMT components remain intact.

Key Features of EMS 1200 V Cut PCB Separator

Every feature of this machine has been engineered with electronics manufacturing challenges in mind.

• Six-Blade Precision Cutting
  • Equipped with 6 high-quality blades for accurate separation
  • Handles large PCB panels with fast cutting lines simultaneously
  • Reduces cycle time and increases productivity

• Adjustable Cutting Speed
  • Cutting speed up to 20 meters per minute
  • Ensures flexibility for diverse manufacturing requirements

• Stress-Free PCB Handling
  • Minimizes mechanical stress on PCBs
  • Prevents micro-cracks in solder joints and tracks
  • Protects sensitive SMT and through-hole components

• Straight-Line Cutting Accuracy
  • Provides clean, uniform cuts along V-grooves
  • Eliminates rough edges, burrs, or misaligned breaks
  • Improves product quality and assembly reliability

• Compact & Durable Build
  • Dimensions: 2430 × 375 × 280 mm
  • Compact footprint despite handling large PCBs
  • Built with industrial-grade materials for long-term durability

• Easy-to-Use Interface
  • Simple, intuitive controls for operator-friendly use
  • Requires minimal training, reducing skilled labor dependency
  • Built-in safety features for secure operation

• Energy-Efficient Design
  • Operates on 220V AC, 50 Hz standard power
  • Low energy consumption compared to manual/semi-automatic methods
  • Cost-effective with reduced operational expenses

Applications of PCB Separator 6 Blade – EMS 1200 V Cut

The EMS 1200 V Cut is versatile and designed for industries that demand bulk production of high-quality PCBs.

• Electronics Manufacturing – Smartphones, telecom equipment, consumer gadgets.
• LED Lighting Industry – Separation of long LED strips, panels, and aluminium PCBs.
• Automotive Electronics – Dashboards, infotainment systems, safety boards.
• Industrial Electronics – Control units, automation boards, industrial sensors.
• Appliances & Consumer Devices – TVs, washing machines, refrigerators, smart appliances.
• EMS & Contract Manufacturing Units – High-volume, multi-client PCB production.

Its six-blade system makes it especially useful for large PCB panels where multiple boards are separated in a single operation.

Why Choose the PCB Separator 6 Blade – EMS 1200 V Cut?

When compared to manual depaneling or smaller machines, the EMS 1200 V Cut offers clear advantages:

• High Productivity
  • Six blades enable fast cuts in a single pass
  • Handles large PCB panels quickly and efficiently
• Protects Your Investment
  • Prevents PCB damage, reducing scrap rates
  • Saves money on rework and defective boards
• Flexible & Scalable
  • Adjustable speed accommodates different PCB types
  • Suitable for both small and high-volume batches
• User-Friendly & Safe
  • Easy to operate, reducing training time
  • Safety features protect operators in high-speed environments
• Compact Yet Industrial-Grade
  • Small footprint with heavy-duty, continuous-use capability
  • Ensures consistent performance in demanding production setups

To further streamline operations, Estovir Technologies offers a complete range of manual and automatic preforming machines to handle different requirements:

• PCB Separator Machines – Designed for precise separation of V-groove and SMT boards:
  • PCB Separator Machine (V-Cut 2 Blade)
  • PCB Separator Machine (V-Cut 6 Blade)
• PCB Lead Cutting Machines – Built for clean and accurate cutting of PCB leads:
  • Manual Feed PCB Lead Cutting Machine – LC M66
  • Automatic PCB Lead Cutting Machine – LC A66
• PCB Assembly Jigs – Essential tools for handling and working on PCB circuit boards:
  • PCB Assembly Jig – PAJ 450

Each of these machines is engineered for high performance and supported by Estovir’s reliable service and fast delivery
