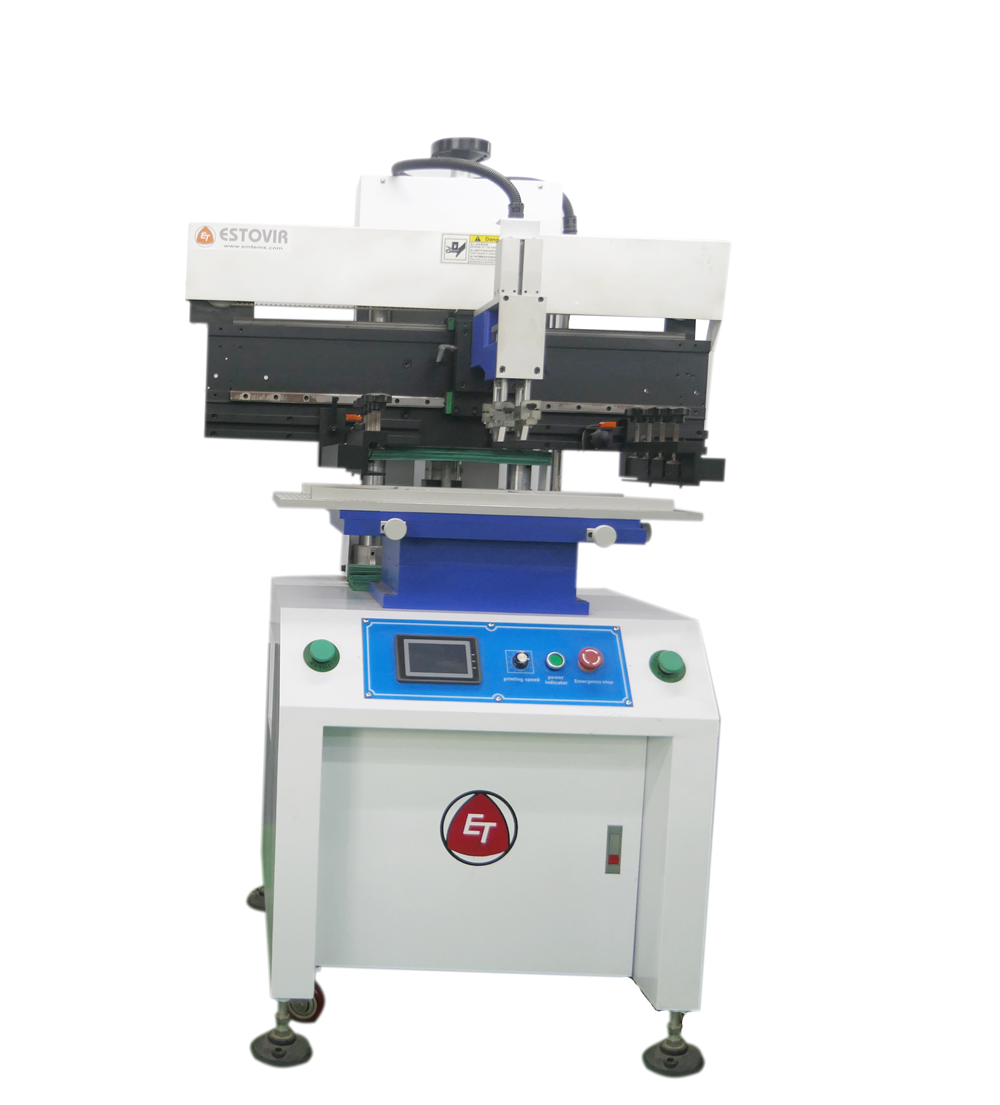

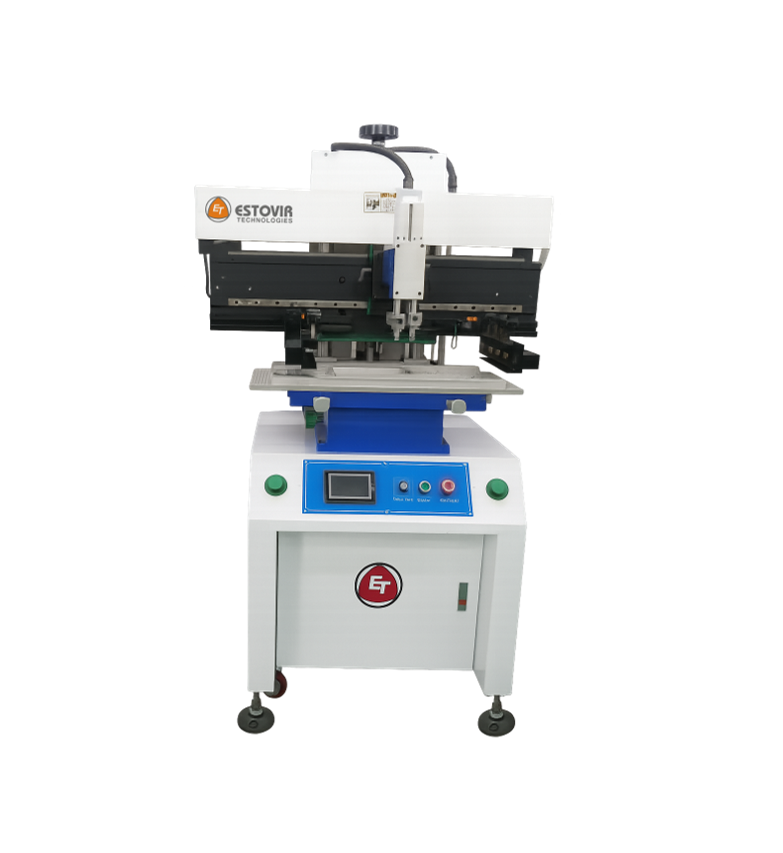

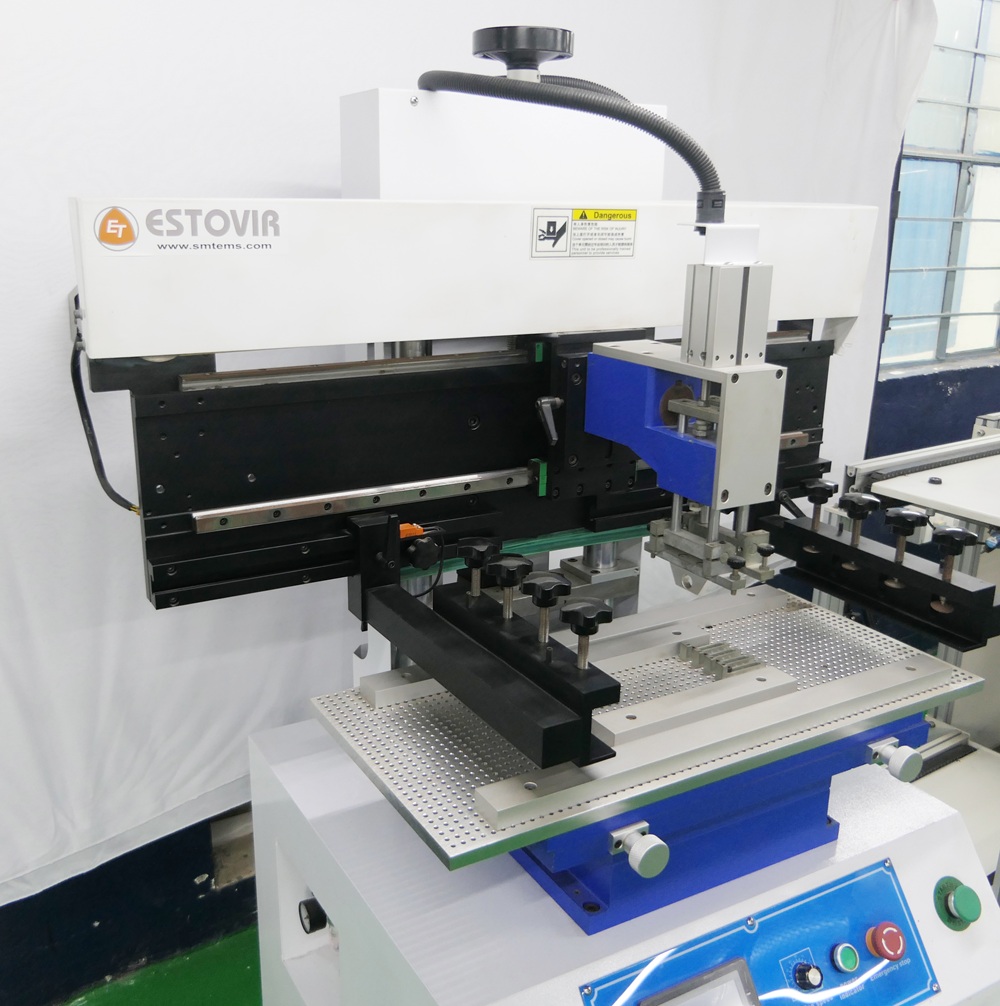

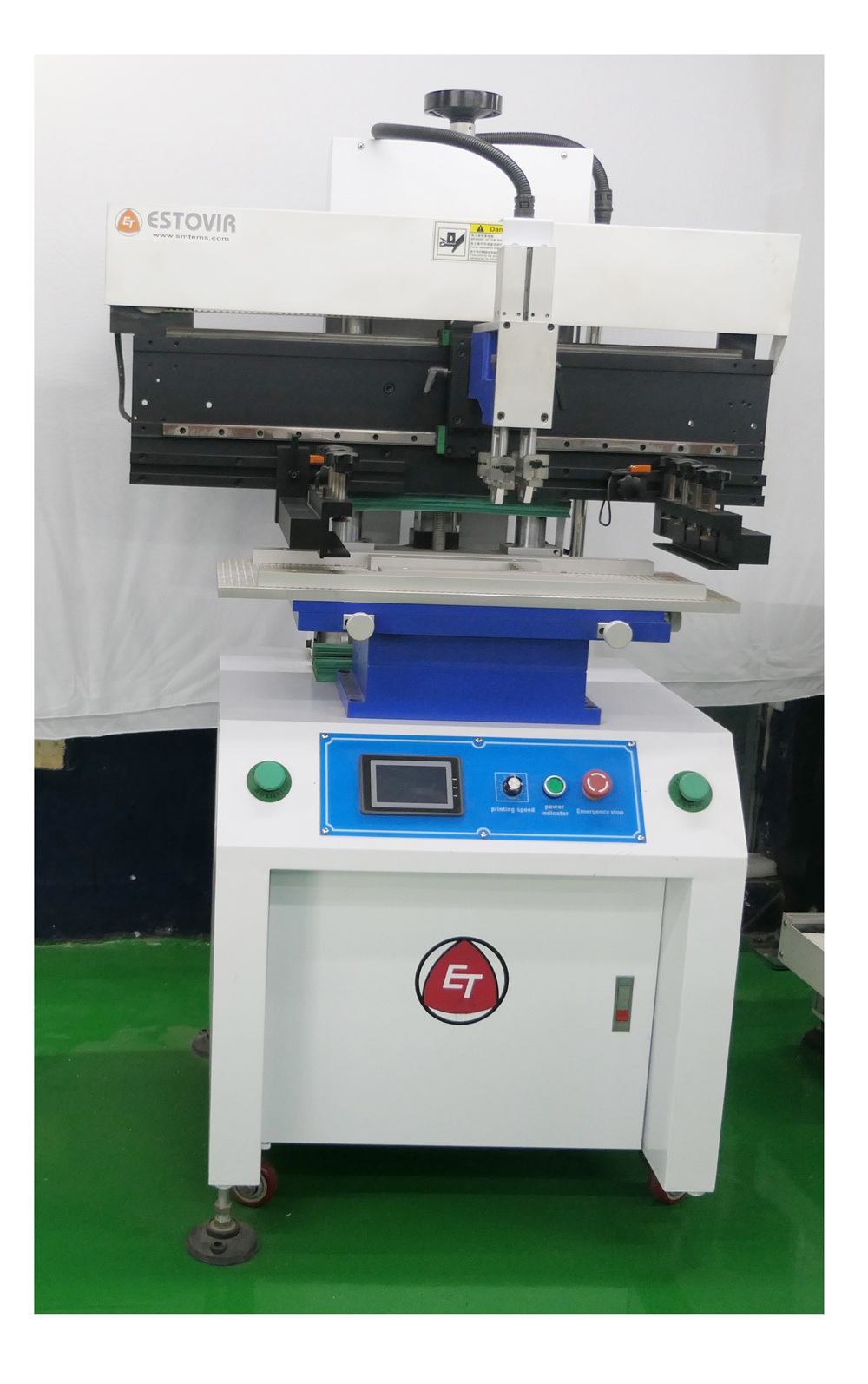

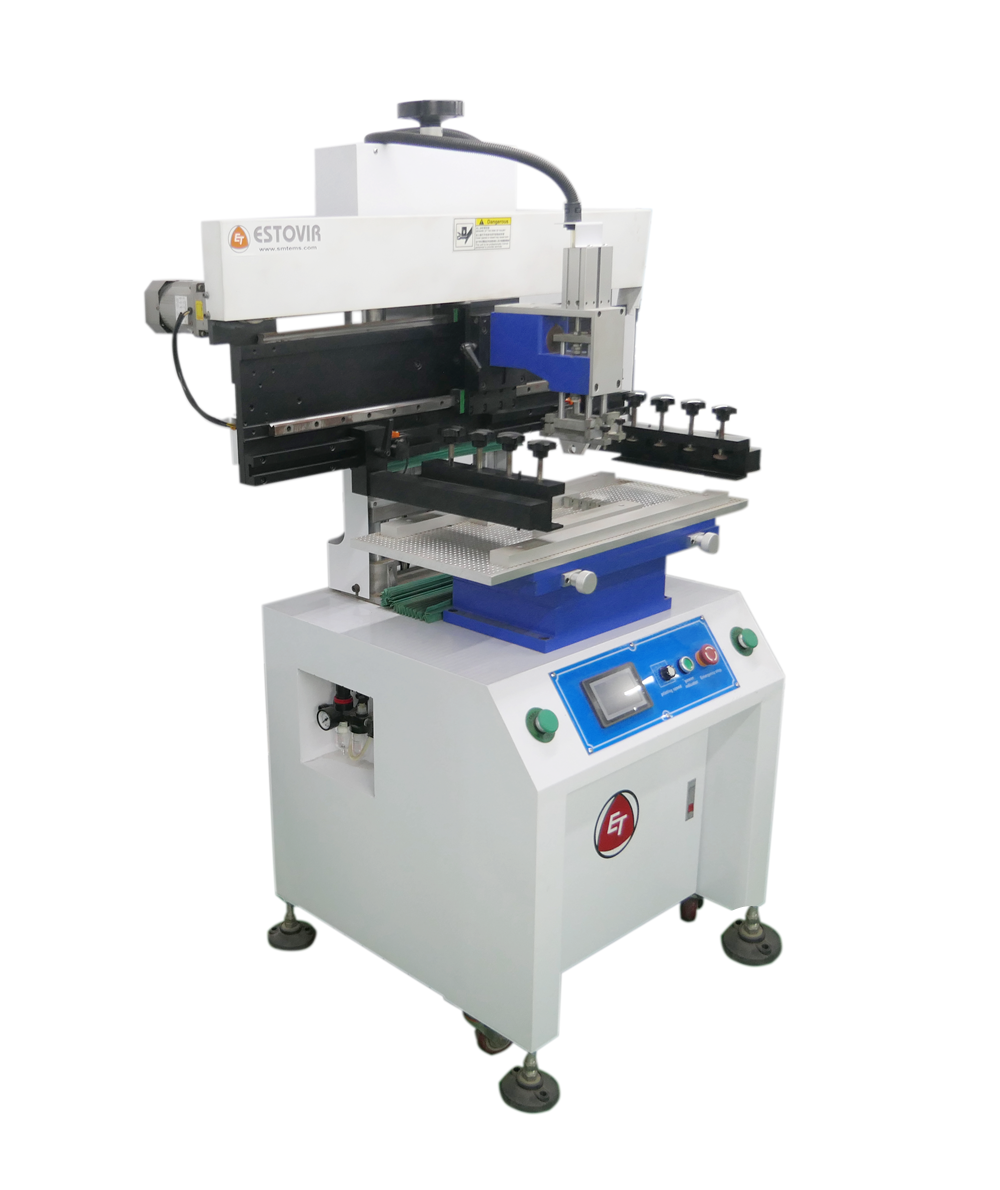

Semi - Automatic Solder Paste Printer ET-680-SP

Semi – Automatic Solder Paste Printer ET-680-SP

  • PLC Control System to ensure working stabilized & reliable; the Touch screen is easy to
  • High Rigidity structure and linear rails ensure the stabilities and precision of
  • This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristics of glue and solder paste.
  • A flexible arming base with the arms can be adjusted toward right or left to match different size of
  • The printing knife can be rotated 45℃ upward and then fixed to be convenient for the cleaning & replacement of knife and stencils. The calibration method is to use the movement of the stencil to match with X, Y, and Z of the printing

₹245,000.00

Get Quote



  • PLC Control System to ensure working stabilized & reliable; the Touch screen is easy to
  • High Rigidity structure and linear rails ensure the stabilities and precision of
  • This printer can automatically set the running parameters to comport with all kind of products and get best performance according to different characteristics of glue and solder paste.
  • A flexible arming base with the arms can be adjusted toward right or left to match different size of
  • The printing knife can be rotated 45℃ upward and then fixed to be convenient for the cleaning & replacement of knife and stencils. The calibration method is to use the movement of the stencil to match with X, Y, and Z of the printing
Model ET 1200 SP
Power Requirement 220V AC, 50Hz, 1 Phase
Power Consumption 100W
PCB Thickness Range 0.2-3.0 mm
Fine Adjustment of Platform +0.05 mm
Respectable Precision 0 0.02 mm
Air Supply 4-6 Kg / cm sq.
Printing Plat form 1200X300
PCB Dimension 1200X200
PCB Positioning Method Positioning Pin
Printing Method Stencil Movement
Dimension L-1325, W-870, H-1650 mm
Weight 285Kg
