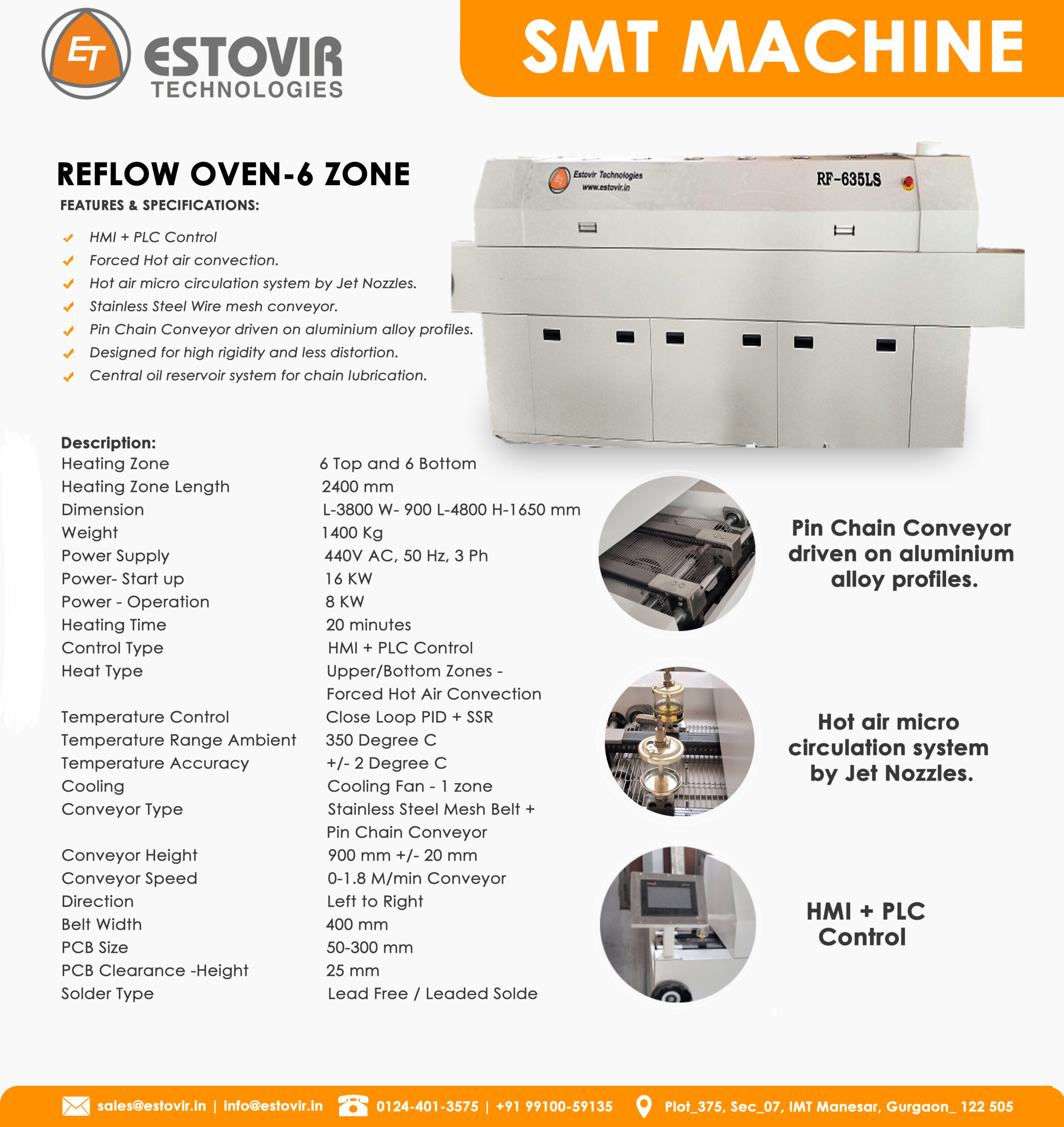

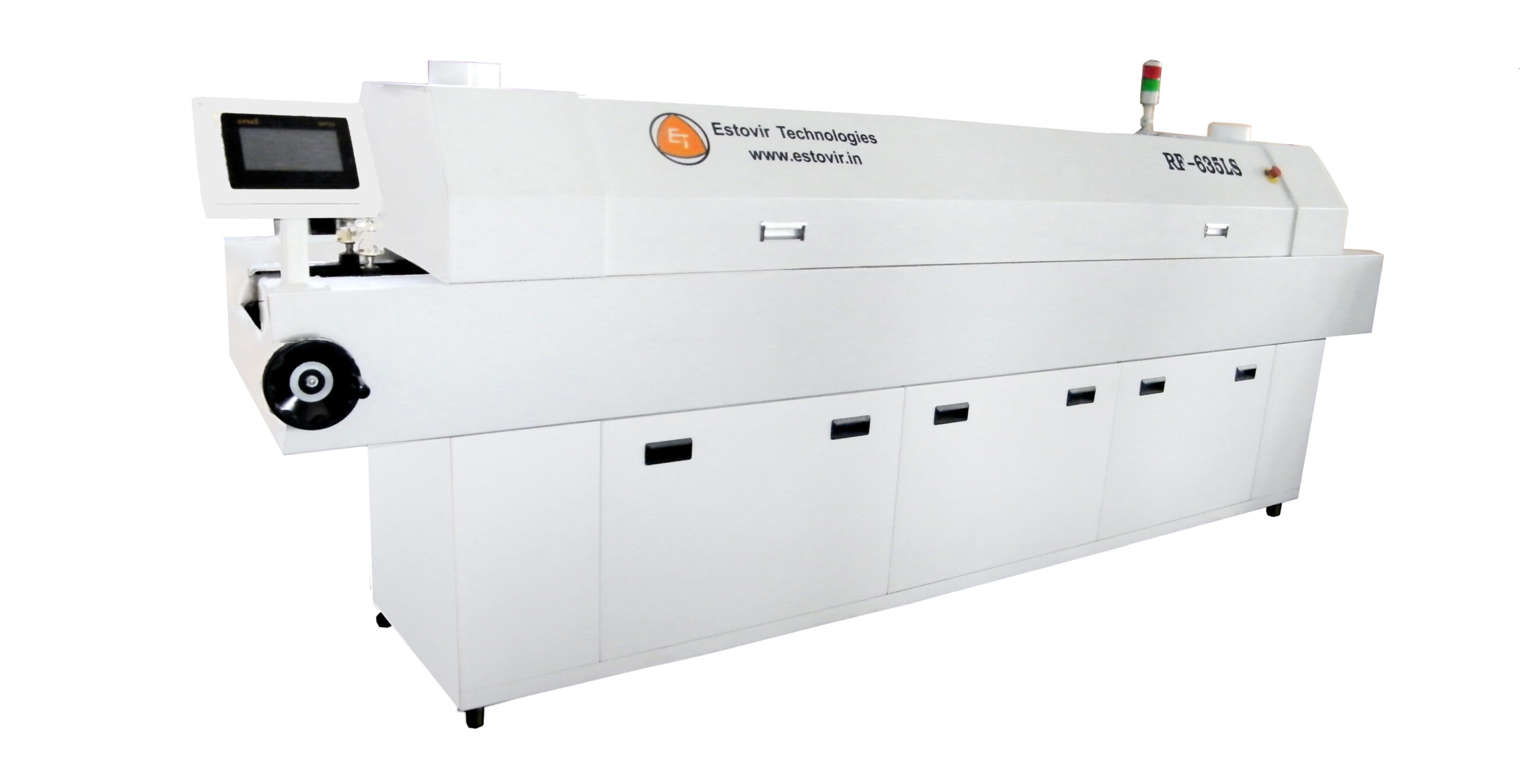

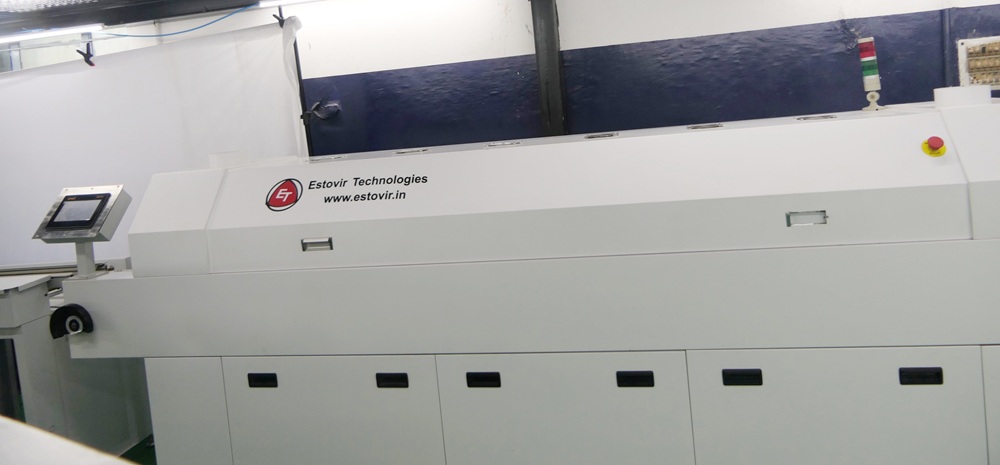

Reflow Oven Conveyorized – 6 Zone

  • HMI + PLC Control
  • forced Hot air convection.
  • Hot air microcirculation system by Jet Nozzles.
  • Stainless Steel Wire mesh conveyor.
  • Pin Chain Conveyor driven on aluminum alloy profiles.
  • Designed for high rigidity and less distortion.

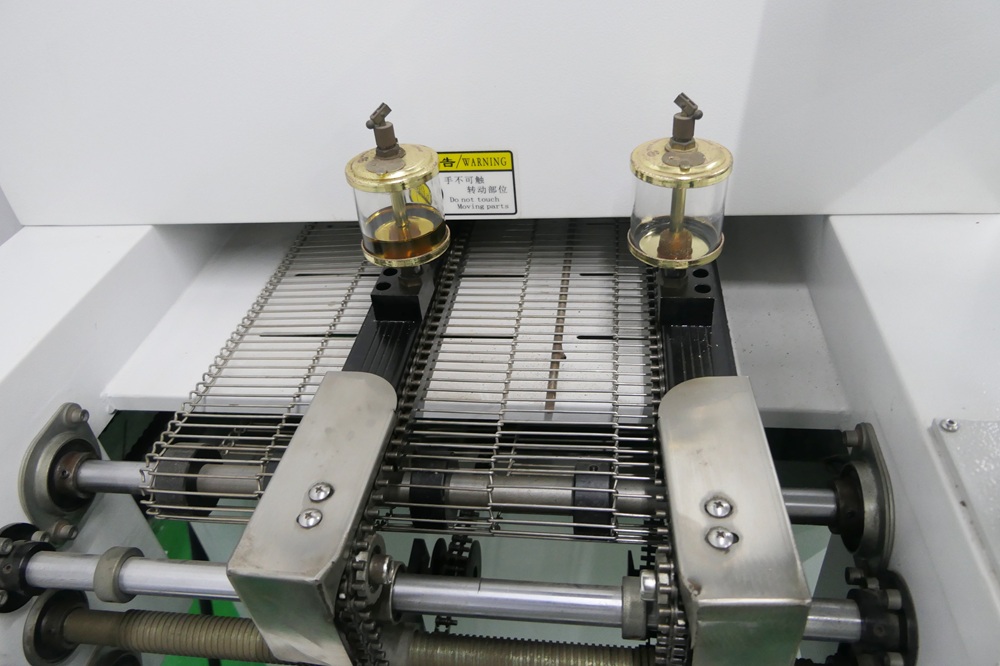

  • Central oil reservoir system for chain lubrication.

₹690,000.00

Get Quote
  • HMI + PLC Control
  • forced Hot air convection.
  • Hot air microcirculation system by Jet Nozzles.
  • Stainless Steel Wire mesh conveyor.
  • Pin Chain Conveyor driven on aluminum alloy profiles.
  • Designed for high rigidity and less distortion.
  • Central oil reservoir system for chain lubrication.

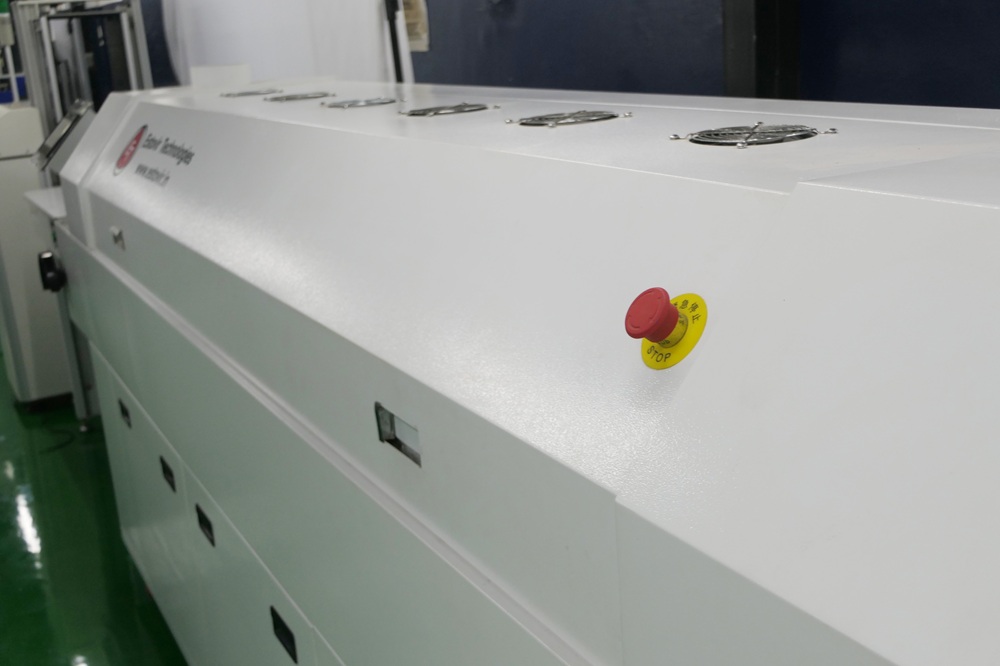

Heating Zone 6 Top and 6 Bottom
Heating Zone Length 2400 mm
Dimension L- 3800 | W-900 | L-4800 | H-1650
Weight 1400 KG
Power Supply 440V AC 50Hz 3Ph
Power-Start Up 34 KW
Power-Operation 8 KW
Heating Time 20 Minutes 20 Minutes
Control Type HMI + PLC Control

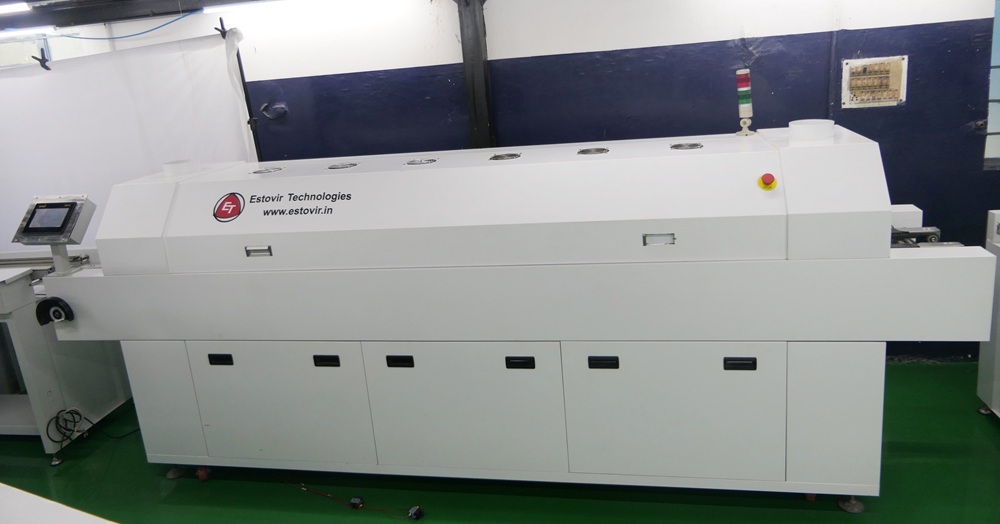

Heat Type Upper/Bottom Zones – Forced Hot Air Convection

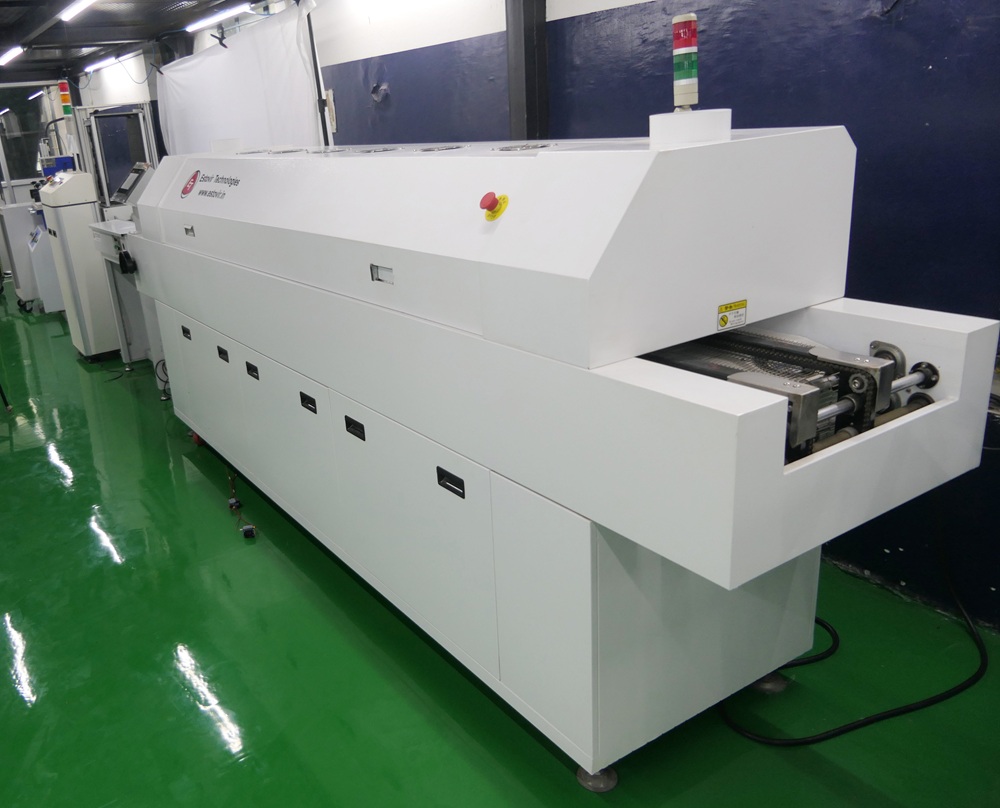

Temperature Control Closed Loop PID + SSR
Temperature Range Ambien 350 Degree C
Temperature Accuracy +/- Degree C
Cooling Cooling Fan -1 zone

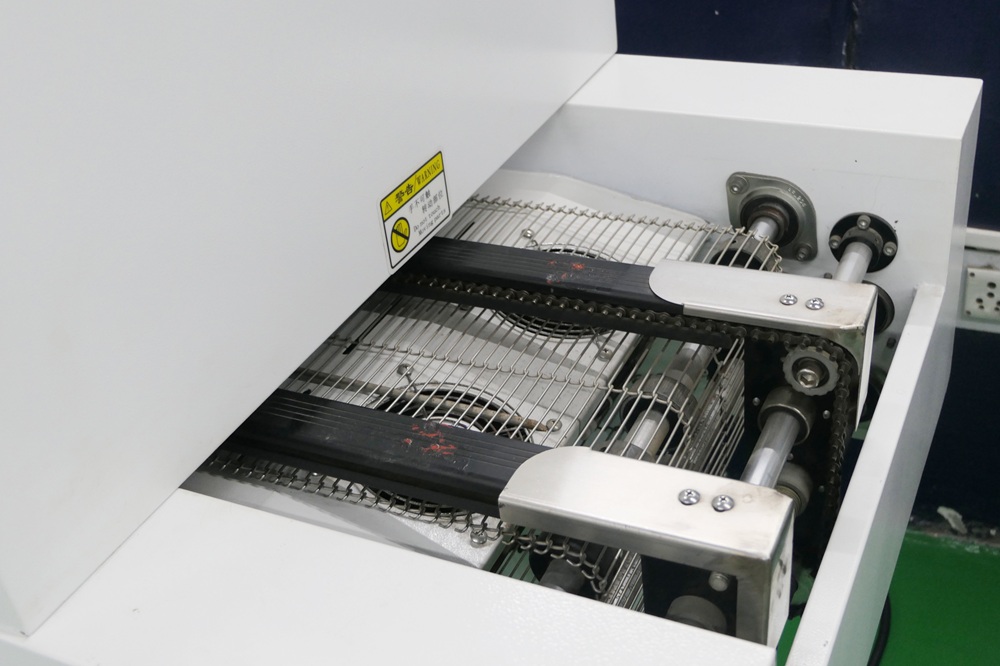

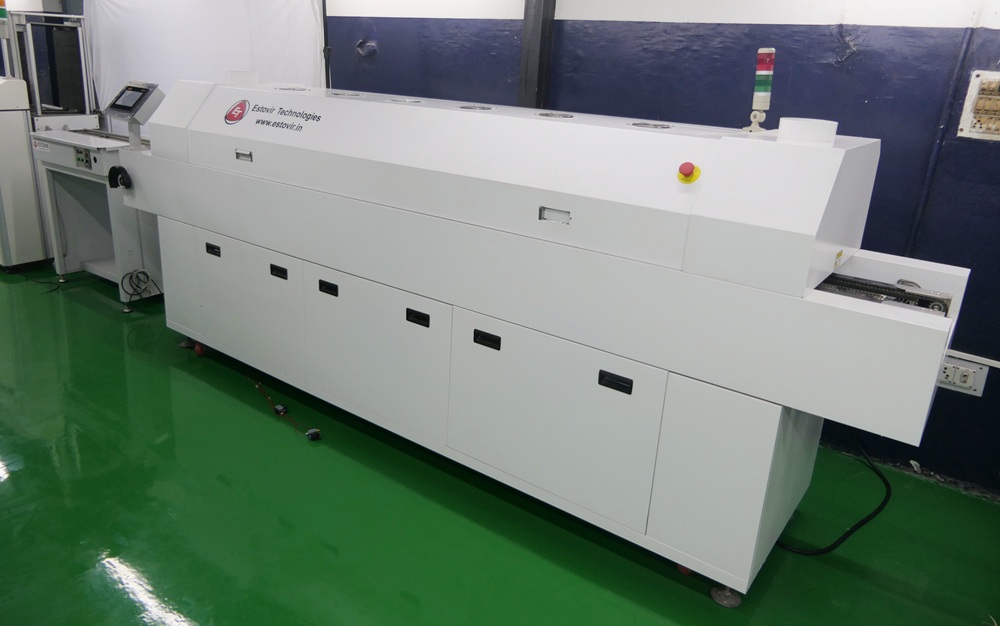

Conveyor Type Stainless Steel Mesh Belt + Pin Chain Conveyor
Conveyor Height 900 mm +/- 20 mm
Conveyor Speed 0-1.8M/min Conveyor
Direction Left to Right
Belt Width 400 mm
PCB Size 50-300 mm
PCB Clearance-Height 25 mm
Solder Type Lead-Free/Leaded Solder
