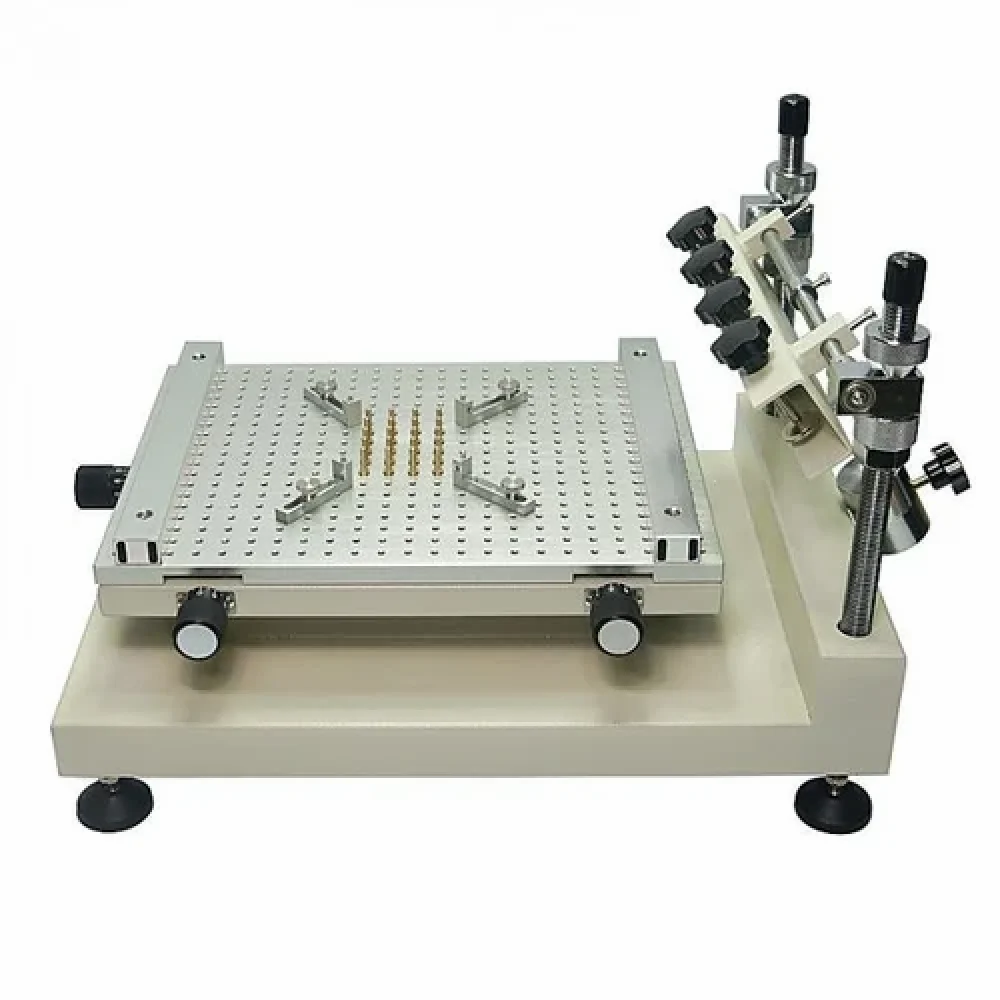

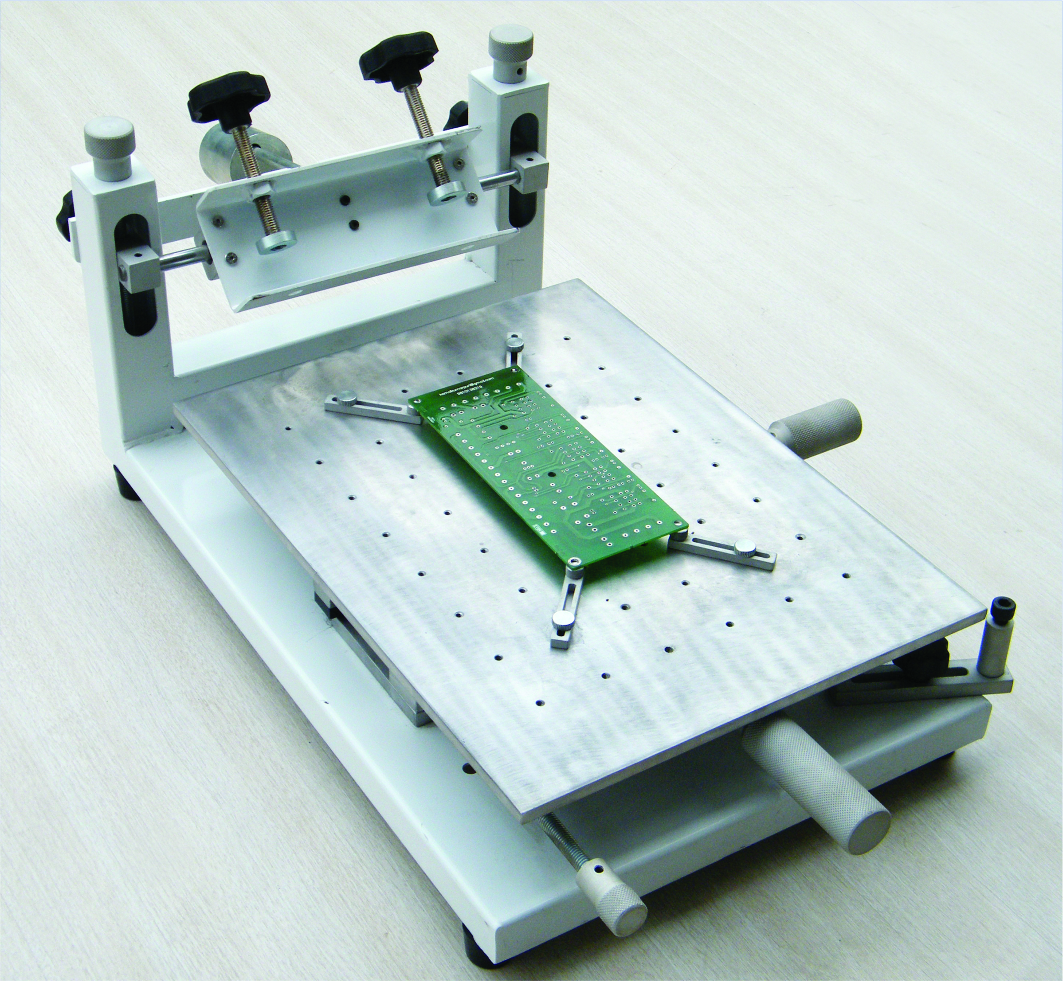

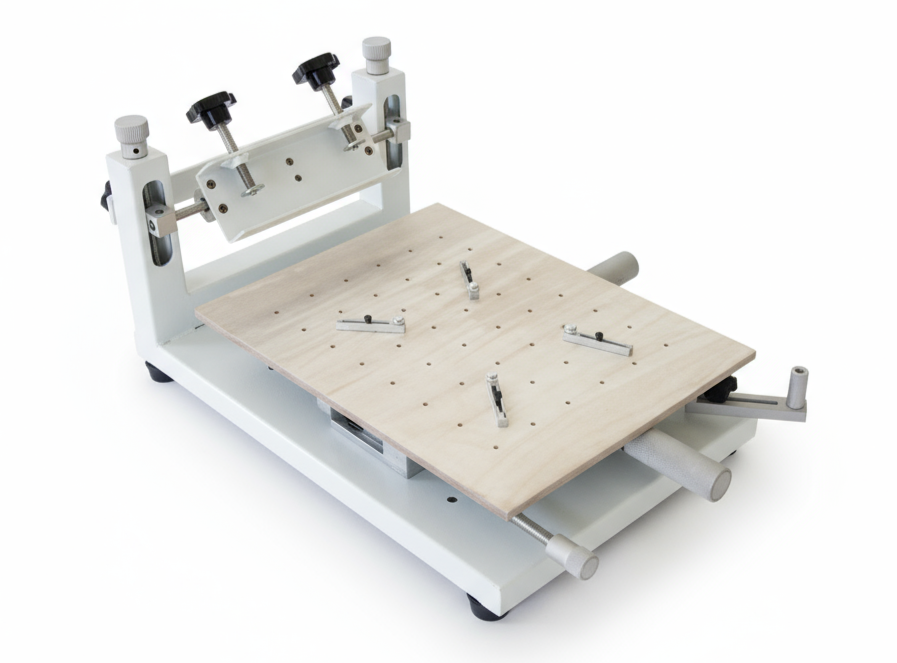

Manual Solder Paste Printer – EMS 3040 MP
Overview
The Manual Solder Paste Printer – EMS 3040 MP by Estovir Technologies is a precision-engineered manual printing solution designed for PCB prototyping and small-scale SMT production. Built with a honeycomb base similar to semi-automatic models, it ensures superior stability, accuracy, and repeatable results.
Its ergonomic design allows flexible adjustment for different PCB types and sizes, making it ideal for manufacturers seeking reliability and cost-effectiveness. With up–down stencil movement supported by a counterbalance and fine-tuning control in X, Y, and theta axes, the EMS 3040 MP offers seamless manual operation with professional-grade results.
Key Features of EMS 3040 MP Manual Solder Paste Printer
- High-Precision Manual Operation
- Ensures consistent solder paste application for single or double-sided PCBs.
- Allows smooth stencil alignment and manual control for optimal precision.
- Honeycomb Base Structure
- Built with the same high-stability honeycomb base as semi-automatic printers.
- Provides vibration-free operation and high accuracy during print cycles.
- Double-Sided PCB Capability
- Supports printing on both sides of PCBs, enhancing flexibility in small-batch production.
- Maintains alignment accuracy during board flipping and repositioning.
- Counterbalanced Stencil Movement
- Easy up-and-down stencil motion with counterbalance for controlled operation.
- Reduces operator fatigue and improves repeatability in every print.
- Fine-Tuning Adjustment System
- Printing platform precisely adjustable in X, Y, and θ (theta) axes.
- Allows micro-adjustments for perfect stencil-to-board alignment.
- Durable and Compact Design
- Made from superior-quality materials for long service life.
- Compact footprint suitable for laboratories, training centers, and small production units.
Applications of EMS 3040 MP
The EMS 3040 MP is designed for manual PCB solder paste and glue printing applications in low to medium-volume SMT lines.
- Ideal for PCB prototyping and development environments.
- Used in training institutes and R&D laboratories.
- Suitable for double-sided PCB assembly.
- Perfect for EMS companies requiring reliable manual printing solutions.
- Excellent for low-cost, high-precision manufacturing setups.
Why Choose EMS 3040 MP?
Investing in the EMS 3040 MP means choosing a durable, precise, and cost-effective manual printing system trusted by engineers and technicians.
- Combines manual flexibility with professional-grade precision.
- Stable honeycomb platform ensures vibration-free operation.
- Easy to operate, clean, and maintain.
- Designed for long-term use with minimal maintenance.
- Backed by Estovir Technologies’ expertise in SMT manufacturing solutions.
- Compact and portable — perfect for small-scale setups.
- Offers maximum ROI with long operational lifespan.
Our Solder Paste Printer Range
At Estovir Technologies, we offer a comprehensive range of manual and semi-automatic solder paste printers designed to meet the precision needs of modern SMT and PCB assembly lines. Each model is built with advanced engineering for reliability, accuracy, and ease of operation — ensuring consistent performance across all production scales.
-
Manual Solder Paste & Glue Printer – EMS 3040 MP
A compact and easy-to-operate manual solder paste printer ideal for prototypes, small batch production, and training environments. -

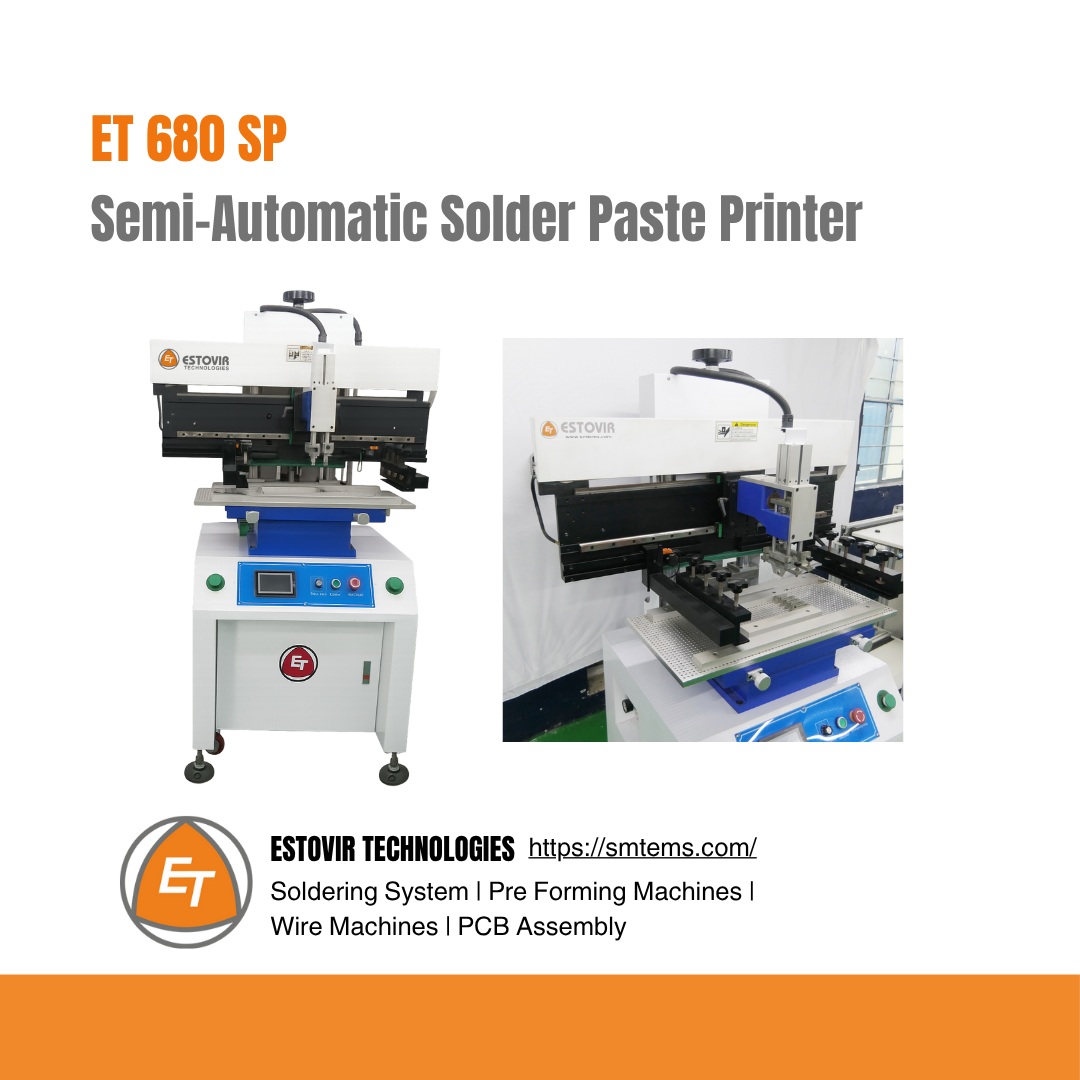

Semi-Automatic Solder Paste Printer – ET 680 SP
A high-precision semi-automatic printer with PLC control, touchscreen operation, and ±0.02 mm accuracy for reliable medium-to-high-volume PCB production. -
Semi-Automatic Solder Paste Printer – 1200 mm
Designed for large-format PCBs and mass SMT assembly, this advanced printer offers expanded print area, high rigidity, and automation-driven efficiency.
