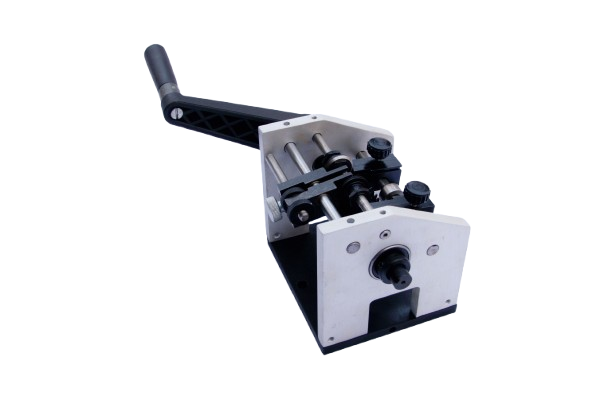

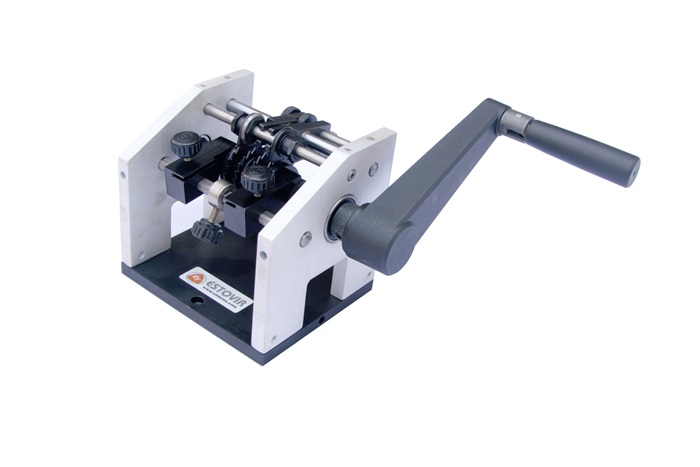

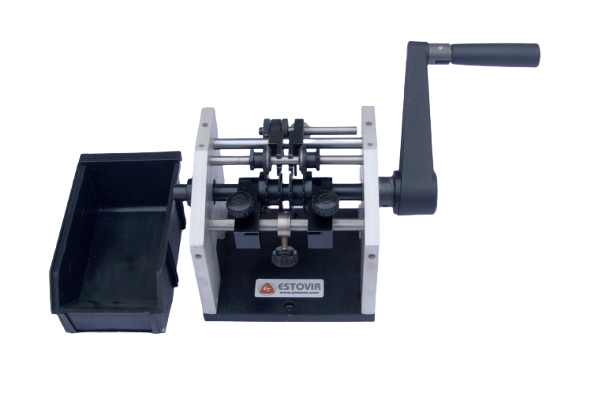

The MAP 860 Manual Cut & Bend Machine for Taped Axial is engineered to deliver precision, efficiency, and reliability for electronics manufacturing environments. Designed by Estovir Technologies, the MAP 860 offers superior handling of taped axial components, optimizing production workflows while ensuring consistent component preparation.
Key Features & Benefits of MAP 860
1. Precision Cutting & Bending
- High-accuracy cutting system with a precision-engineered blade for uniform cutting lengths.
- Adjustable bending angles allow customized component shaping for various assembly requirements.
2. Ergonomic and User-Friendly Design
- Manual operation with minimal effort, reducing operator fatigue during extended use.
- Compact and space-saving footprint, making it suitable for diverse workstation setups.
3. Versatile Compatibility
- Supports a wide range of taped axial components with lead diameters up to Ø 0.8 mm softwire.
- Adjustable tape guides for quick adaptation to different tape widths, ensuring multi-purpose applications.
4. Robust and Durable Construction
- Industrial-grade materials ensure long-term durability, even in high-volume production environments.
- Low-maintenance design with easy access to critical components, minimizing downtime.
5. Enhanced Productivity and Throughput
- Optimized manual operation streamlines processing for higher production speeds.
- Consistent output quality reduces rework, minimizes material waste, and improves overall efficiency.
6. Cost-Effective and Sustainable Solution
- Designed for low operational costs, reducing power consumption and material waste.
- Supports eco-friendly manufacturing by minimizing electronic waste and improving process sustainability.
Applications of the MAP 860 Manual Cut & Bend Machine
The MAP 860 Manual Cut & Bend Machine is designed for high-precision PCB assembly, catering to industries like consumer electronics, automotive, telecommunications, medical devices, aerospace, and industrial automation. It ensures accurate component processing for gadgets, vehicle sensors, communication devices, medical equipment, and robotics. Widely used in R&D labs, educational institutions, and contract manufacturing, it enhances efficiency, reliability, and production flexibility across diverse applications.
Component Specification
| A | 3.5 – 20 |
| B | 3.0 – 20.0 |
| C | 1.3 min |
| D | Ø 3.0 – Ø 10.0 |
| W | Ø 0.5 – Ø 0.8 |
| P | A+2C+W |
