Inlet Conveyor – ET 1000 EC | PCB Linking Conveyor
Overview
The Inlet Conveyor – ET 1000 EC is a precision-engineered linking conveyor designed to streamline PCB transfer in SMT and wave soldering lines. It acts as a reliable connection between multiple stages of the assembly process, ensuring smooth, vibration-free, and accurate PCB movement. Built with ESD-safe materials, variable speed control, and adjustable width, the ET 1000 EC is ideal for modern electronics manufacturing services (EMS), consumer electronics, automotive, and medical device industries.
By integrating seamlessly with upstream and downstream equipment like manual insertion lines, wave soldering machines, reflow ovens, and inspection stations, this inlet conveyor enhances efficiency, reduces downtime, and supports flexible line configurations.
Key Features
The ET 1000 EC inlet conveyor is packed with features that make it versatile, efficient, and production-ready.
- Adjustable PCB Width
- Supports PCB sizes from 50 mm to 350 mm.
- Quick manual adjustment for flexible production.
- Smooth and Reliable PCB Transfer
- Gear/chain-driven system for stable movement.
- Low vibration design minimizes component shift or damage.
- Variable Speed Control
- Conveyor speed adjustable between 5–6 m/min.
- Adaptable to match different assembly line speeds.
- Robust & ESD-Safe Design
- Aluminium profile with stainless-steel top platform.
- Powder-coated frame ensures durability and static protection.
- SMEMA Communication
- Plug-and-play connectivity with SMT and soldering equipment.
- Supports optional Ethernet and Industry 4.0 integration.
- Smart Additions
- Alignment sensors for precise PCB positioning.
- Buzzer and safety covers for enhanced operator safety.
- Flexible Configurations
- Available in 500 mm, 1000 mm lengths.
- Height-adjustable legs for seamless integration into different lines.
- Energy Efficient & Low Maintenance
- Consumes only 40–70 W power.
- Easy-to-service modular design reduces downtime.
Applications
The ET 1000 EC inlet conveyor plays a vital role in modern PCB assembly lines, ensuring seamless connectivity between different processes. It is especially valuable in high-volume electronics manufacturing, where speed and accuracy are critical.

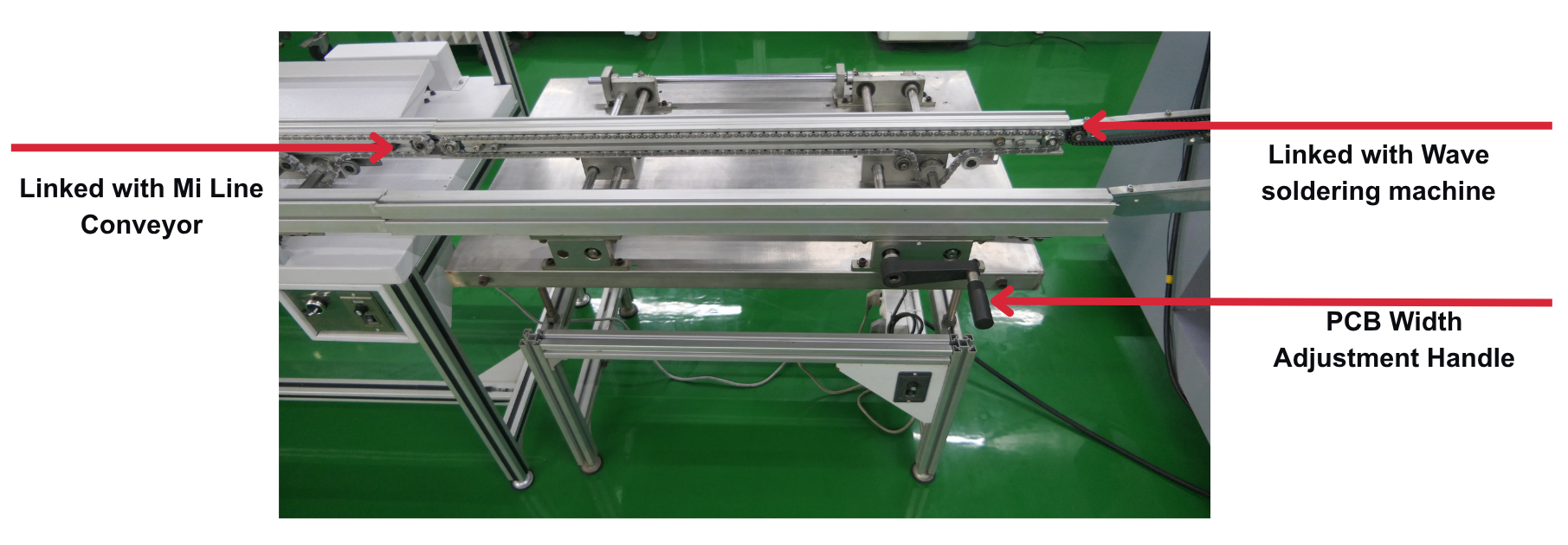

- Linking Manual Insertion (MI) lines with Wave Soldering Machines.
- Acting as a buffer station to maintain production flow.
- Transitioning between assembly modules with different elevations.
- Serving as an inspection, pause, or repair station during production.
- Widely used in EMS, automotive electronics, consumer devices, and medical PCB manufacturing.
Why Choose ET 1000 EC?
Choosing the ET 1000 EC inlet conveyor means investing in efficiency, reliability, and long-term performance. It is engineered for manufacturers who value flexibility, precision, and low operational costs.
- Accurate and stable PCB transfer without misalignment.
- Customizable lengths and widths to fit any production line.
- Industry-standard communication for plug-and-play integration.
- Durable and ESD-safe design for long-term reliability.
- Optional smart features to meet Industry 4.0 requirements.
- Globally trusted conveyor system for electronics assembly.
Our Complete Conveyor Solutions
At Estovir Technologies, we provide a comprehensive range of conveyor systems tailored to meet diverse production and assembly needs. Each solution is designed to optimize workflow, increase efficiency, and enhance operator comfort while ensuring seamless integration into your existing setup.
-
MI Line – Single Side: Compact single-sided conveyor for smooth and reliable PCB handling.
-
MI Line – Double Side: Dual-sided configuration that maximizes throughput and saves production floor space.
-
MI Line Module – 2.4 Mtr.: Modular conveyor unit for flexible and easily expandable line setups.
-
Insertion Work Station with Manual Free Flow Conveyor – MPI 350: Ideal for manual insertion processes, ensuring effortless material flow.
-
Work Table Conveyor: Ergonomic workstation conveyors with ESD-safe designs for operator safety and precision work.
-
Cooling Conveyor: Specialized design for controlled cooling after soldering or reflow operations.
-
SMD Line Conveyor – 1000 mm:Compact conveyor engineered specifically for smooth transfer in SMD assembly lines.
-
Work Station Conveyor: Integrated assembly workstation with customizable and adjustable features.
-
Inlet Conveyor: Reliable entry-point conveyor for feeding PCBs and components into the assembly line.
All our conveyor systems are built to standard configurations but can also be customized for specific requirements—delivering efficiency, durability, and superior production quality.
