SMT PCB Magazine Loader – ET 250L
Overview

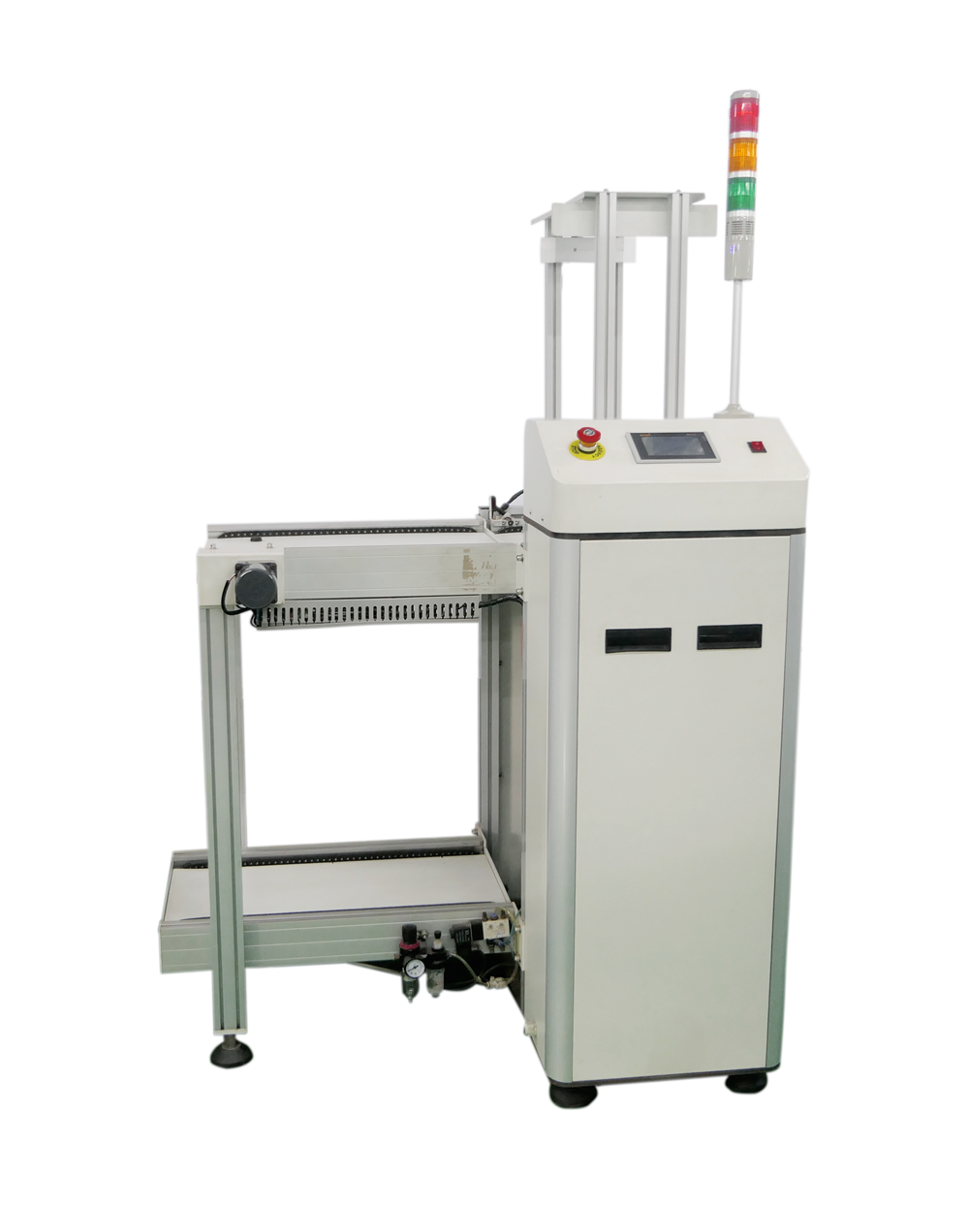

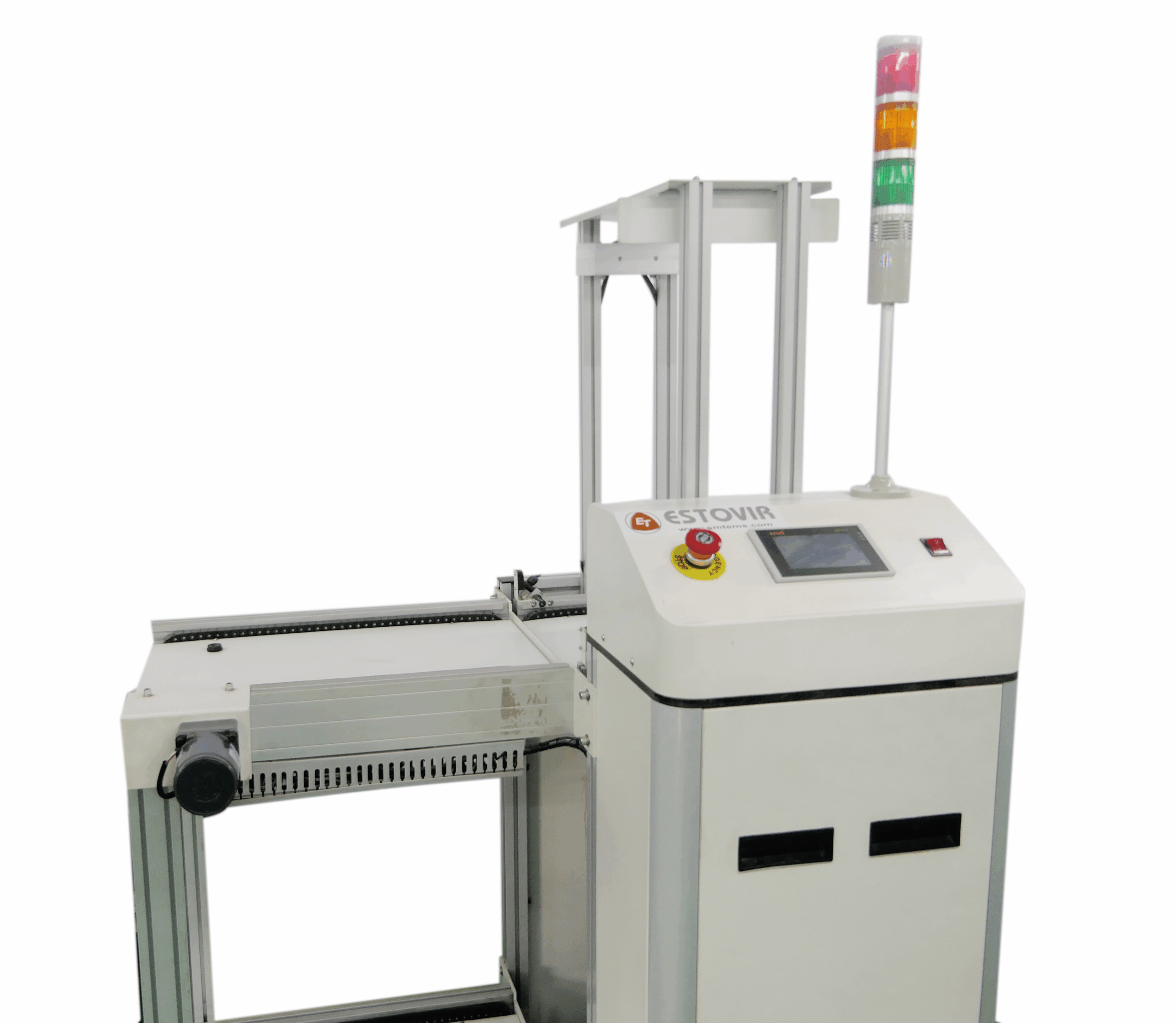

The SMT PCB Magazine Loader – ET 250L by Estovir Technologies is a high-performance automatic PCB loading system designed for efficient and stable board handling in SMT (Surface Mount Technology) and AI (Automatic Insertion) assembly lines.

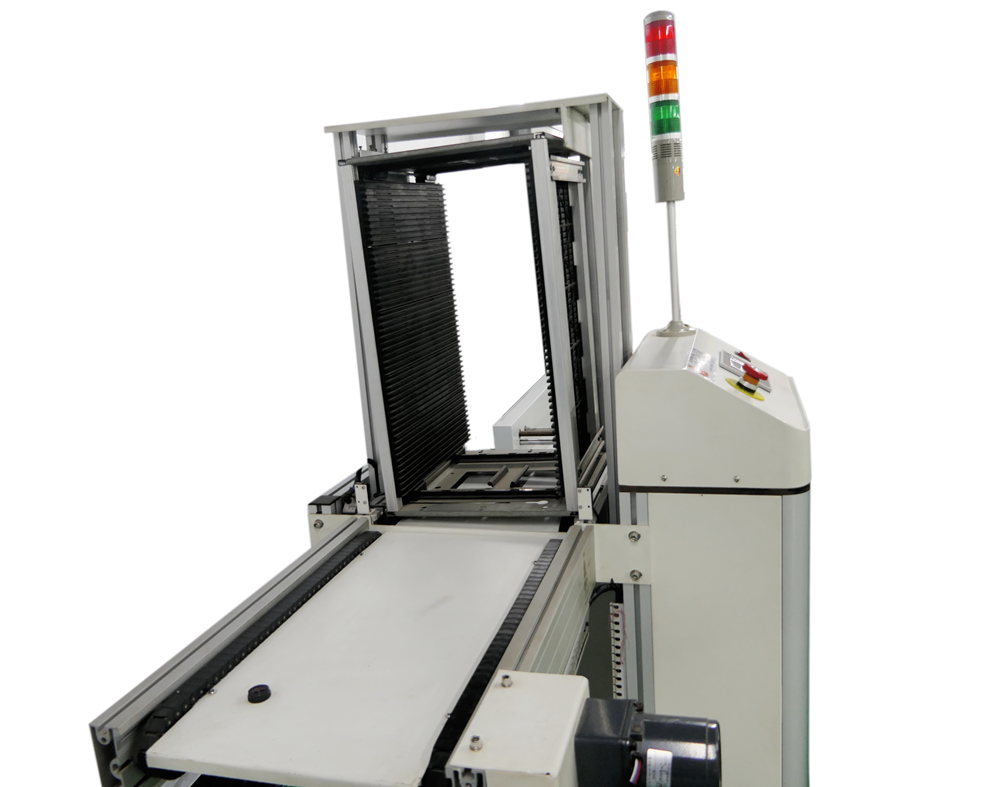

This machine automatically loads PCBs into magazines with precision and consistency, supporting up to five magazines simultaneously—two empty magazines, one in process, and two full magazines. Its aluminum alloy structure provides superior durability and mechanical stability, ensuring smooth operation even in high-volume production environments. Equipped with an advanced PLC + micro-computer control system, intuitive touchscreen interface, and SMEMA-compatible communication, the ET 250L guarantees seamless integration with SMT and AI production lines, reducing manual labour and maximizing line efficiency.
Key Features of SMT PCB Magazine Loader – ET 250L
- Robust Aluminium Alloy Frame
- Provides enhanced machine stability and rigidity.
- Ensures smooth, vibration-free operation during long-term use.
- Advanced PLC + Micro-Computer Control
- Offers steady, programmable, and reliable control.
- Ensures consistent PCB loading performance with minimal operator intervention.

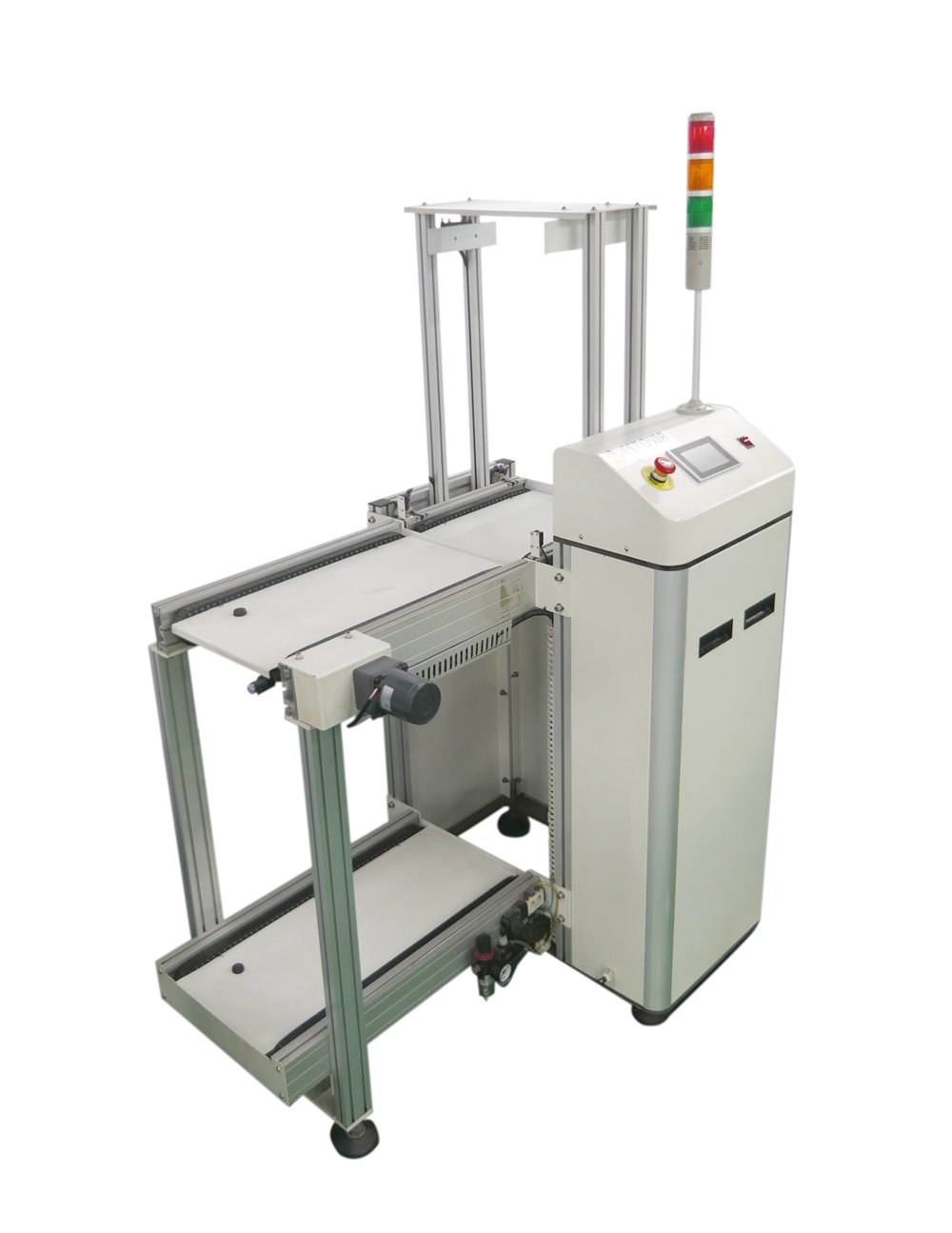

- Touchscreen Operation Panel
- Intuitive interface for easy setup and real-time monitoring.
- Reduces operator training time and enhances productivity.
- Adjustable Elevator Pace
- Automatically adjusts magazine lift pace according to PCB thickness.
- Provides flexible handling for different PCB sizes and types.

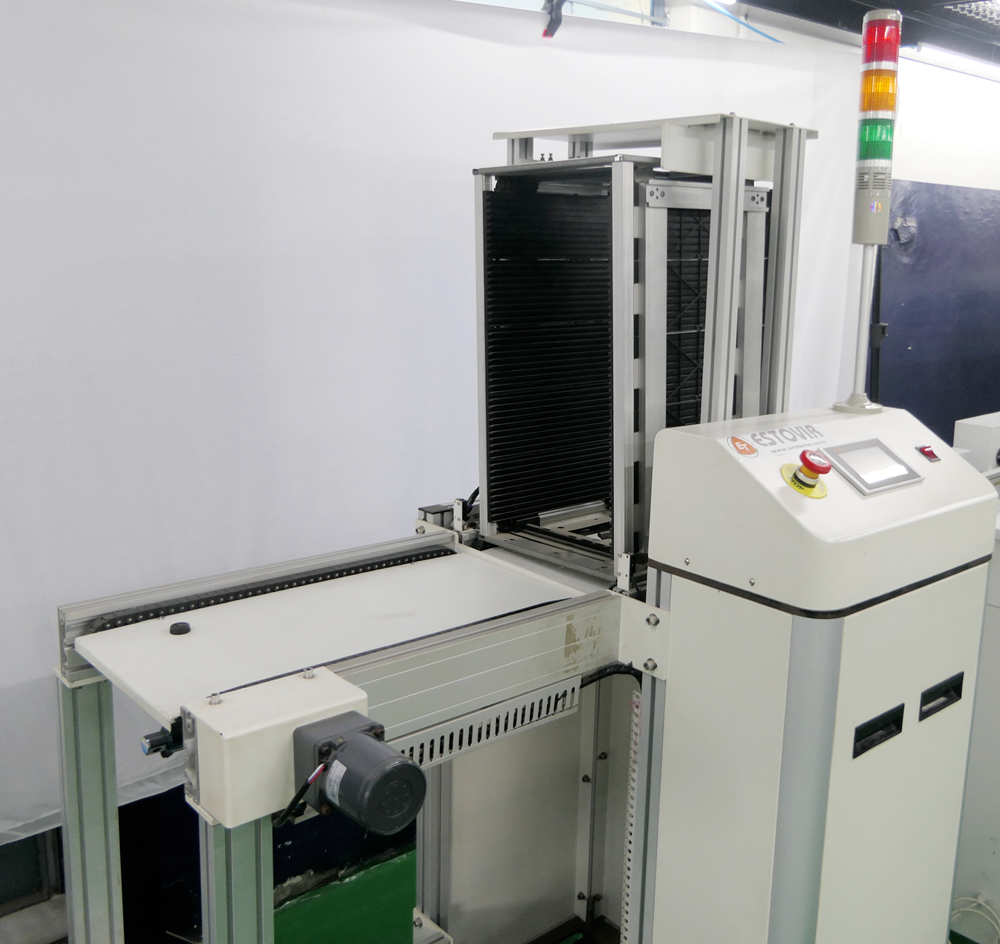

- Multi-Color Light and Sound Alarm
- Integrated visual and audible alarm system for safety and operational alerts.
- Enables fast response in case of errors or line interruptions.
- Flexible Speed, Pitch, and Height Control
- Adjustable pitch range (10–60 mm) and speed control for different magazine types.
- Ensures compatibility with diverse SMT and AI production setups.
- SMEMA-Compatible Interface
- Fully compatible with all standard SMT and AI machines.
- Enables synchronized and automated communication between equipment.
- Fast Loading and Changeover
- PCB loading cycle of approximately 6 seconds per board.
- Quick magazine changeover within 30 seconds for uninterrupted production.
- Energy-Efficient and Low Maintenance
- Operates on 220V AC, 50Hz, requiring 4–6 kg/cm² air pressure.
- Designed for reliable 24/7 operation with minimal maintenance.
Applications of SMT PCB Magazine Loader
- The ET 250L is ideal for automated PCB loading in electronics manufacturing lines where precision, consistency, and speed are critical.
- Automatic loading of PCBs at the start or end of SMT and AI assembly lines.
- Streamlined material transfer between conveyors and magazine racks.
- Prevents PCB damage by reducing manual handling.
- Increases automation efficiency in high-volume production lines.
- Suitable for various PCB sizes and thicknesses.
Why Choose ET 250L PCB Magazine Loader
- The ET 250L combines durability, automation, and precision engineering to deliver exceptional performance in PCB handling.
- Premium aluminium alloy frame ensures long-term stability and rigidity.
- Advanced PLC and micro-computer control guarantee smooth and accurate operation.
- User-friendly touchscreen for simplified setup and control.
- Multi-alarm system improves operational safety and reduces human error.
- Adjustable pace and pitch for compatibility with diverse PCB formats.
- Fast loading and changeover cycles boost production throughput.
- Fully SMEMA-compatible for easy integration with SMT and AI systems.
- Supported by Estovir Technologies’ reliable after-sales service and expert technical support.
