Automatic Forming for Taped Axials (Vertical) – UAP 301 V by Estovir Technologies

Overview of Automatic Forming for Taped Axials (Vertical) – UAP 301 V

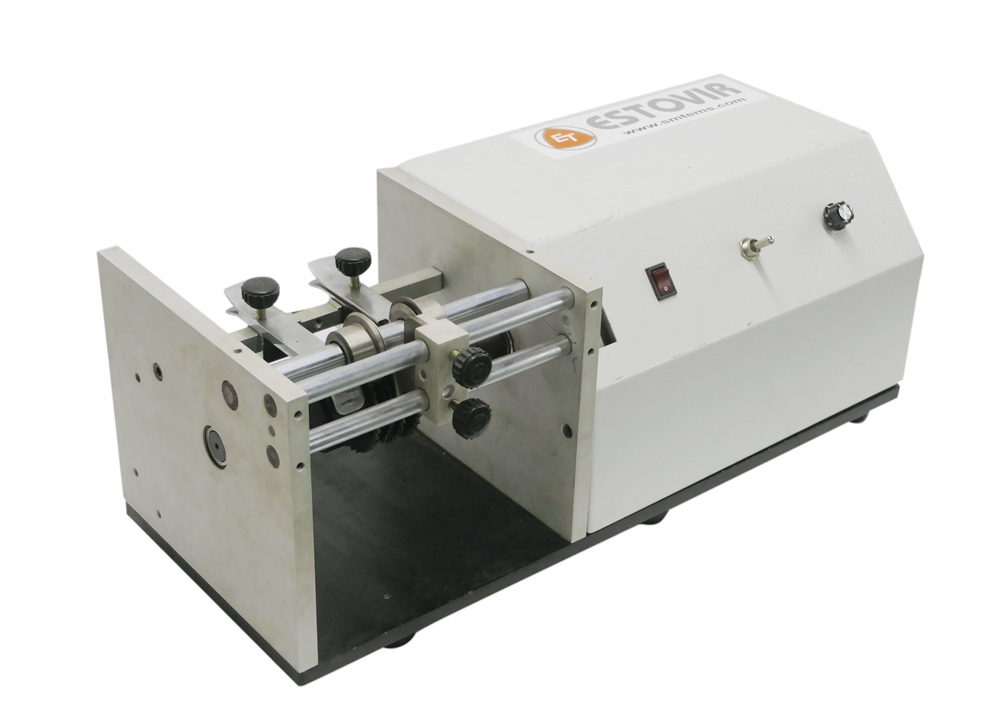

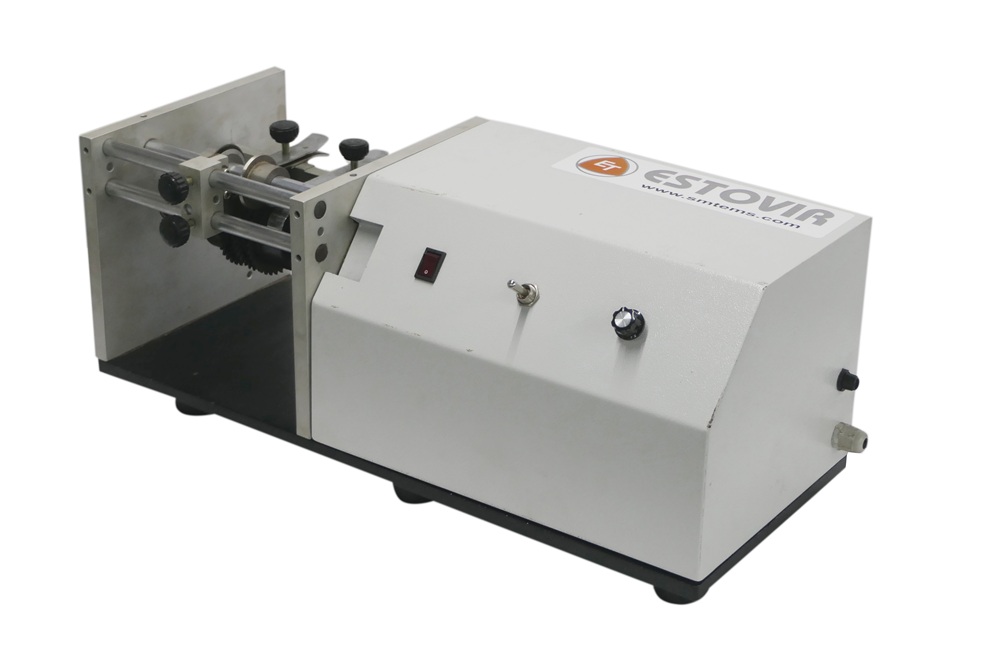

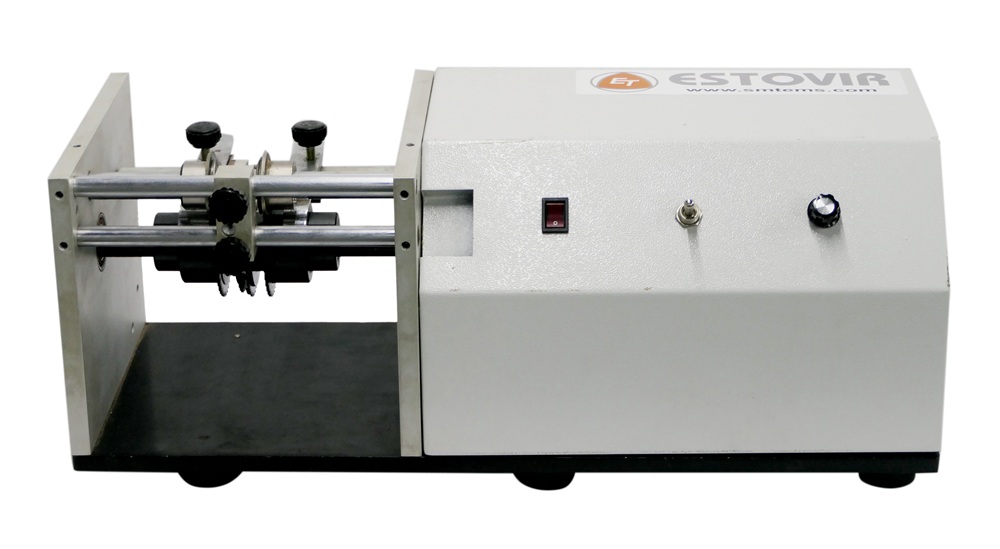

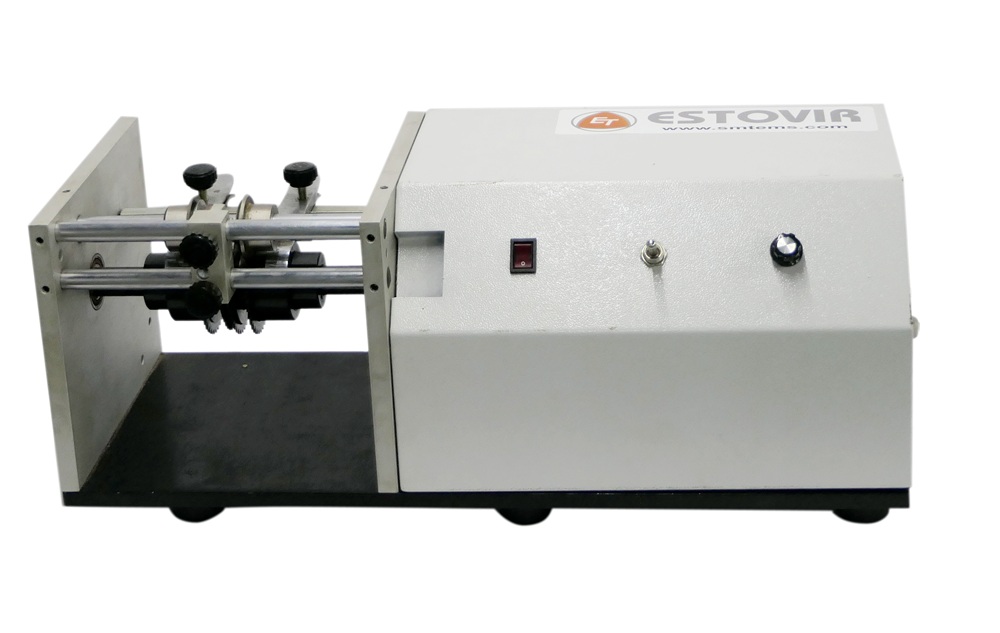

The UAP 301 V by Estovir Technologies is an advanced motorized machine designed for automatic cutting and V-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing.

Key Features of Automatic Forming for Taped Axials (Vertical) – UAP 301 V

• Motorized Automatic Operation
  Significantly reduces manual effort while increasing output and consistency.
• High-Speed Processing
  Delivers up to 14,000 components per hour, ideal for mass production environments.
• Accurate and Repeatable V-Forming
  Ensures precise bending with consistent pitch and lead spacing for vertical mounting.
• Supports Lead Diameters Up to 1.37mm
  Accommodates various component sizes, making it highly adaptable to different production requirements.
• Adjustable Speed Control
  Fine-tune forming speed to suit varying component types and line speeds.
• Compact & Rugged Design
  Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space.
• Low Power Consumption
  Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation.
• Low Maintenance
  Designed for 24/7 industrial use with simple maintenance routines.

Applications

• The UAP 301 V is suitable for various electronics manufacturing applications:
• SMT production lines
• PCB assembly facilities
• Automotive and industrial electronics
• Component forming for LED and consumer electronics
• Component packaging and lead processing units

Why Choose UAP 301 V?

• Designed for effortless high-volume forming
• Compact, reliable, and energy-efficient
• Trusted by professionals for its durability and accuracy
• Backed by Estovir Technologies’ proven expertise in lead forming systems

To further streamline operations, Estovir Technologies offers a complete range of manual and automatic preforming machines to handle different requirements:

• Cut and Bend Machine – Cut and bend of taped radial components up to Dia 0.8mm soft wire.
  • Manual: Manual Cut & Bend Machine for Taped Axials – MAP 860 A
  • Motorized: Automatic Cut & Bend Machine for Taped Axials – UAP 850 A

• De-Taping Machine – Cutting of taped radial components for tape
  • Manual: Manual De-Taping Machine for Taped Radials – MAP 860 R
  • Motorized: Automatic De-Taping Machine for Taped Radials – UAP 850 R
• Forming for Taped Axials Vertical – Perfect for vertical forming of axials up to Dia 1.37mm
  • Manual: Manual Forming For Taped Axials (Vertical) – MAP 301 V
  • Motorized: Automatic Forming for Taped Axials Vertical – UAP 301 V
• Forming for Taped Axials Horizontal– Suitable for horizontal forming of taped axials up to Dia 1.37mm
  • Manual: Manual Forming For Taped Axials (Horizontal) – MAP 301 H
  • Motorized: Automatic Forming for Taped Axials (Horizontal)– UAP 301 H

Each of these machines is engineered for high performance and supported by Estovir’s reliable service and fast delivery

WATCH PRODUCT DEMO: VIDEO
